Load Cell

A load cell is a transducer that converts force or weight into an electrical signal. It is commonly used in various industries and applications to measure and monitor the force or weight of objects.

  • Type
  • Rated load
  • Accuracy
  • Material
  • Dimension/mm
  • Data Sheet
  • Get Quotes

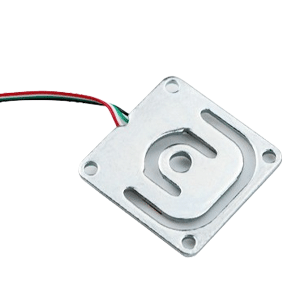

  • GML670 full bridge
  • 10,30,50kg,100kg,150kg,200kg
  • C1(0.05%)
  • Manganese steel
  • 34*34*1.0mm,34*34*1.5mm,34*34*2.0mm,34*34*3.0mm,34*34*4.0mm,
  • Get Quotes

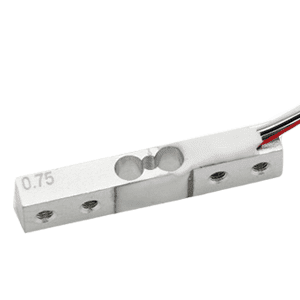

  • GML611
  • 1,2,3,5,10,15,20,25,30,40,50kg
  • C1(±0.05%)
  • Aluminum alloy
  • 80*12.7*12.7mm
  • Get Quotes
  • GPB100R
  • 3,5,8,10,15,20,30,40,50,60,80,100kg
  • C3(±0.02%)
  • Aluminum alloy
  • 130*30*22mm
  • Get Quotes
  • GPB200R
  • 7.5,15,30,75,150,300,600kg
  • C1(±0.05%)
  • Aluminum alloy
  • 70*39*3.5mm,70*45*4.5mm,70*45*5.5mm,70*45*7.75mm
  • Get Quotes
  • GSB205R
  • 0.1,0.2,0.3,0.5,1,2,3,5T
  • C3(±0.02%)
  • Alloy steel
  • 130*31.8*31.8mm,171.5*38.1*38.1mm
  • Get Quotes

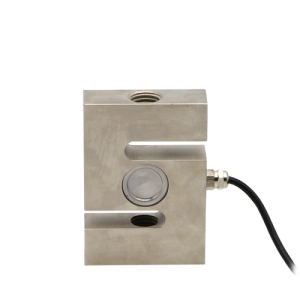

  • GSL301
  • 0.05~200kN
  • C1(±0.05%),C3(±0.02%)
  • Alloy steel
  • 64*51*12.7mm,76*51*19.1mm,76*51*25.4mm,108*76*25.4mm,178*127*51mm,188*140*60mm
  • Get Quotes

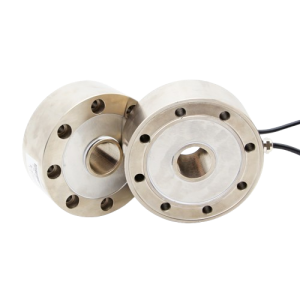

  • GSS406
  • 5~2000kN
  • C1(±0.05%)
  • Alloy steel
  • φ105*34mm,φ125*48mm,φ145*54mm,φ205*78mm,φ296*100mm,
  • Get Quotes

Force Sensor

The Force Sensor is a device used to measure the force applied to an object. It is designed to convert the mechanical force into an electrical signal that can be easily measured and analyzed.

  • Type
  • Rated load
  • Accuracy
  • Material
  • Dimension/mm
  • Data Sheet
  • Get Quotes
  • GML642
  • 10,20,30,50.100,200(kN)
  • ±0.5%
  • Stainless steel
  • φ75.7*25.4mm
  • Get Quotes
  • GML661
  • 50,100,200.300.500,1000(N)
  • ±0.1%
  • Stainless steel
  • φ10*5.2mm
  • Get Quotes
  • GML669
  • 0.1,0.2,0.3,0.5,1,2,3,5,10,20(KN)
  • ±0.5%
  • Stainless steel
  • φ20*12mm, φ26*15mm, φ30*18mm,
  • Get Quotes
  • GML668A
  • 0.1,0.2,0.3,0.5,1,2,5,10,20(kN)
  • ±0.3%
  • Stainless steel
  • φ26*37.5mm, φ51*70mm, φ51*75mm
  • Get Quotes

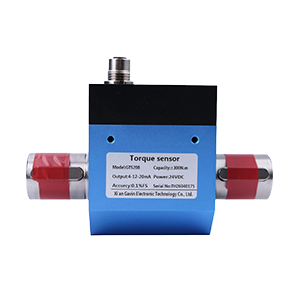

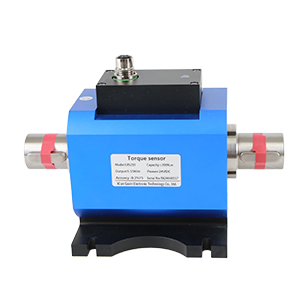

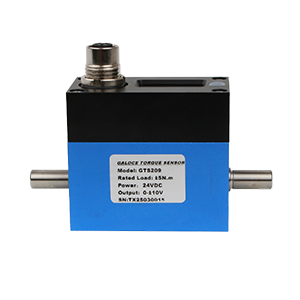

Torque Sensor

A torque sensor is a device used to measure the torque or rotational force applied to an object. It is commonly used in various applications such as automotive, aerospace, and industrial machinery.

  • Type
  • Rated load
  • Accuracy
  • Speed range
  • Output signal
  • Data Sheet
  • Get Quotes

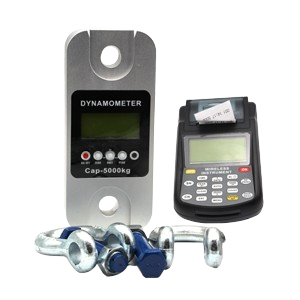

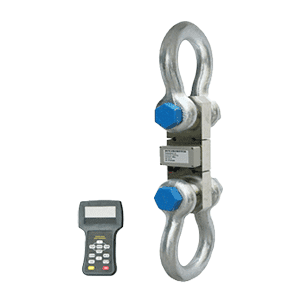

Dynamometer

Wireless dynamometer is an extremely well-built instrument for industry use ,as a standard wireless tool offer universal applications,Whether used as conventional crane weigher or to measure force, wireless dynamometer is microprocessor controlled for high precision accuracy, calibration is easier with wireless handheld indicator.

  • Type
  • Rated load
  • Division
  • Dimension/mm
  • Material
  • Data Sheet
  • Get Quotes
  • GWD200
  • 1-200T
  • 0.5kg-100kg
  • 245*112*43mm, 320*128*92mm
  • Aluminum and alloy steel capacities are powder coated
  • Get Quotes
  • GWD500
  • 5-200T
  • 0.5kg-100kg
  • 190*110*30mm,245*110*36mm
  • Nickel plated high strength alloy steel
  • Get Quotes

Junction box

Junction box electronically sums the outputs of different type load cells to form a single output equal to the sum of the loads on each load cell. Potentiometers in series with the bridge excitation are provided to match the outputs of the load cell. Commonly used in industrial scales, small weighbridge, bin, tank, hopper and platform applications.

  • Type
  • Channel
  • Material
  • Dimension/mm
  • Ingress Protection
  • Data Sheet
  • Get Quotes
  • GJB201
  • 2-12 channels
  • Stainless steel
  • 252*173*46(mm), 203*96*36mm
  • IP65
  • Get Quotes

Load cell amplifier

The Load cell amplifier also called the weight transmitter, is a transmitter that converts physical quantities into electrical signals and converts the output of the millivolt signal into a standard DC or other signal.

  • Type
  • Channel
  • Supply voltage
  • output signal
  • Ingress Protection
  • Data Sheet
  • Get Quotes
  • GT202
  • 1-4Channles
  • 12/ 24VDC
  • 0-5V/ 0-10V/ 0-±5V/ 0-±10V/ 4-20mA
  • IP65
  • Get Quotes
  • GT203
  • 1-4Channles
  • 10V~30VDC
  • 0-±10V,0-±20mA,4-20mA,RS232,RS485
  • IP65
  • Get Quotes

Weight indicator

The weight indicator is a device used to measure the weight of an object or a person. The weight indicator typically consists of a display screen, a weighing platform or sensor, and a control panel.

  • Type
  • Supply voltage
  • Output signal
  • Dimension/mm
  • Accuracy
  • Data Sheet
  • Get Quotes
  • GSI305
  • AC 220V (175-285V), 30W, 50Hz
  • 0-20mA
  • 288(W)x 190(D)x 95(H)mm
  • 0.1%
  • Get Quotes
  • GSI312-1
  • 90-260V AC or 15-30V AC/DC, 24VDC
  • 4-20mA or 0-10V Output range can be set
  • H48*W96*L80mm
  • ≤0.05%F.S
  • Get Quotes

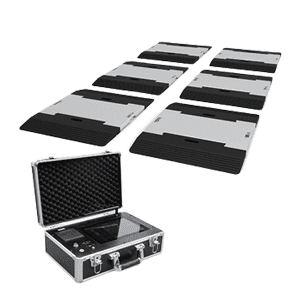

Portable Truck Scale

Portable truck scale is a weighing system that is designed to be easily transported and set up at different locations. It is used to weigh trucks and other heavy vehicles to determine their weight for various purposes.

  • Type
  • Pad size
  • Pad Rated load
  • Accuracy
  • Instrument type
  • Data Sheet
  • Get Quotes
  • GPWA02-1
  • 500×400×40mm, 720×450×40mm, 900×500×40mm
  • 10T, 15T, 25T
  • Static: 0.1%~0.3%; Dynamic:5%
  • Wired and wireless
  • Get Quotes
  • GPWA08
  • 500×400×58mm, 720×450×58mm,
  • 1-6T;2-20T
  • Static: 0.1%-0.3%
  • Wired and wireless
  • Get Quotes

Crane scale

Digital crane scales are used to measure the weight of a load as it is lifted, typically by a crane, hoist or winch. Ideal for industrial areas including manufacturing factories, recycle scrap metal yards and also heavy-duty industrial plants.

  • Type
  • Rated load
  • Housing material
  • Instrument type
  • Data Sheet
  • Get Quotes
  • GSP910
  • 2-20T
  • NEMA 12/IP54 powder coated Foundry Cast Aluminum
  • Remote control
  • Get Quotes
Customization Of Sensors

To meet the user diversified requirement, GAMICOS offers customization services covering a wide range of special needs, such as product range, output, power supply, wiring and so on.
