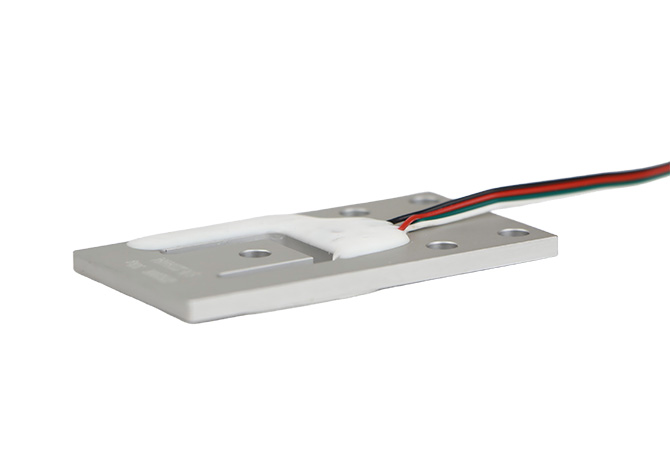

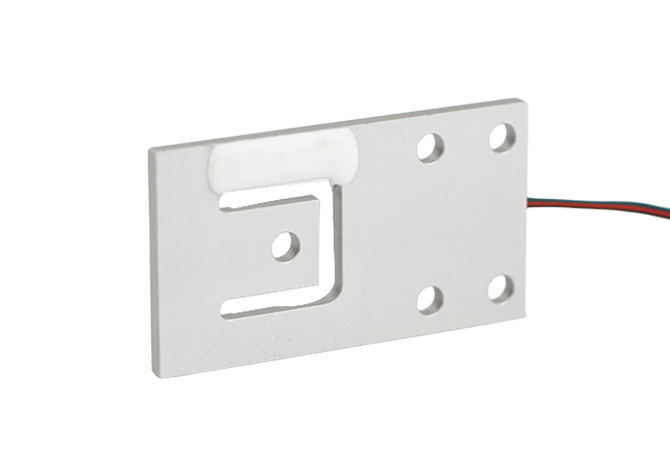

GPB200R Ultra-Thin Planar Beam Load Cell

Weighing Solution Provider

Ultra-Low Profile Structure

Space-saving "flat-beam" design. Ideal for ultra-thin medical scales and compact retail equipment.

Wide Capacity (Up to 600kg)

Versatile range from 7.5kg to 600kg, covering both light-duty retail and heavy-duty cargo scales.

C1 Precision Performance

Compliant with C1 accuracy standards. Ensures high stability and minimal error for professional weighing.

Optimized for Smart Retail

Proven in Medical Beds, Unmanned Stores (Gravity Shelves), and Baggage Weighing systems.

Bespoke Engineering Services

Tailored cable lengths, terminal connectors (Molex/JST), and matched 4-piece weighing kits.

IP65 Anodized Construction

High-strength aluminum alloy with professional anodized coating. Moisture-resistant and durable.

Get Quotes

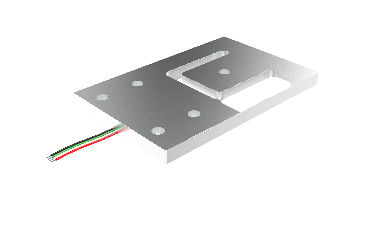

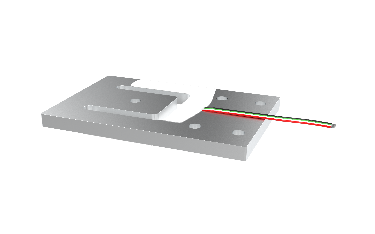

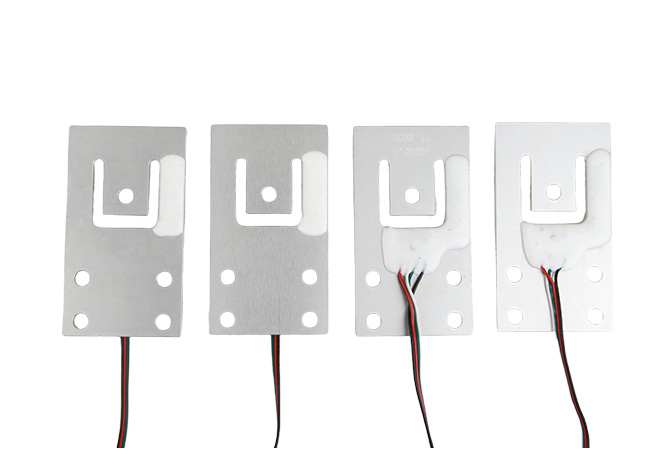

GPB200R Thin Planar Beam Load Cell

The GPB200R is a high-precision, low-profile planar beam load cell, engineered for ultra-thin weighing applications where vertical space is extremely limited. Built with high-strength aluminum alloy, it delivers reliable C1 accuracy across a wide range of capacities from 7.5kg up to 600kg. Its flat architecture makes it the gold standard for medical scales, retail computing equipment, and cargo weighing platforms.

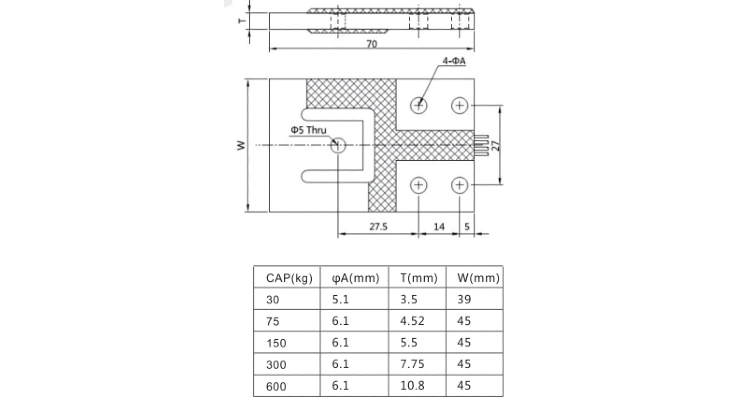

Technical Specifications

Parameter	Specification
Rated Capacity	7.5, 15, 30, 75, 150, 300, 600 (kg)
Accuracy Class	C1
Rated Output	1.0 ± 0.1 mV/V
Comprehensive Error	± 0.03% F.S.
Input Resistance	1150 ± 50 Ω
Output Resistance	1000 ± 10 Ω
Material	Aluminum Alloy (Anodized)
Protection Class	IP65 Waterproof
Excitation Voltage	5 - 12 V DC

Targeted Applications

Medical & Hospital Bed Scales

Ensures ultra-low scale height for patient accessibility and high accuracy for medical monitoring.

Retail & POS Equipment

Perfect for slim-design retail checkout scales and electronic pricing scales.

Cargo & Baggage Weighing

Commonly integrated into airport baggage counters and courier weighing platforms.

Smart Retail gravity Sensing

The essential sensor for unmanned stores and smart vending shelves to track inventory in real-time.

Bespoke Customization Services

Optimize the GPB200R for your specific project with our comprehensive customization options:

Custom Capacities (up to 600kg)

Specific Connectors (Molex, JST)

Tailored Cable Lengths & Shielding

Calibrated Sets (3 or 4-piece kits)

Housing & Mounting Hole Mods

OEM Labeling & Branding

Frequently Asked Questions

1. What makes the GPB200R suitable for high-capacity applications?

Despite its thin design, the GPB200R is available in capacities up to 600kg. The planar beam structure distributes the load effectively, providing stable C1 accuracy even at higher weights.

2. Why choose a Planar Beam over a Single Point Load Cell?

Planar beam sensors are designed for "thin" scales. While single point cells are taller, planar beams allow for an extremely low profile, which is critical for medical bed scales and compact retail equipment.

3. Can I use these sensors in sets of four?

Yes, typically planar beam sensors are used in sets of 4 under a platform to form a complete scale. We offer matched sets to ensure consistent output and calibration across all corners.

4. Is the aluminum alloy resistant to environmental factors?

Yes, the GPB200R is made of anodized aluminum alloy with an IP65 protection rating, making it resistant to dust and moisture commonly found in medical and retail environments.
