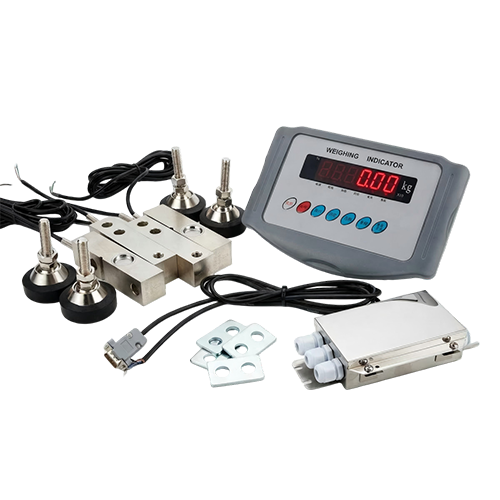

GSB205R Shear beam load cell

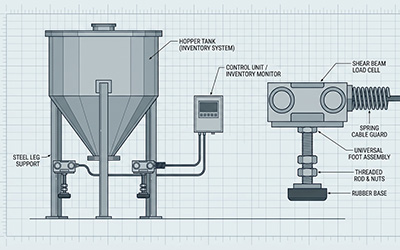

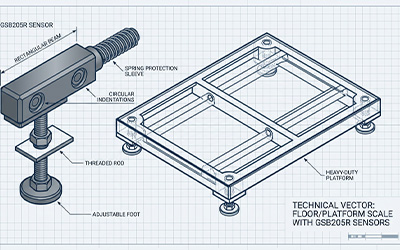

GALOCE GSB205R shear beam load cell, cantilever Load Cell also called bending beam load cell,  the load cell have the 500kg, 1Ton,2Ton,3Ton,5Ton, with feet and gasket, tend to be the most commonly used due to the variety of available options. They are widely used in floor scale, livestock scale, forklift scale, tank weighing systems and other weighing devices. Contact us if you need more weight indicator and load cell amplifier.

> Solution

Range: 0.05-3Ton

Comprehensive Error: 0.02%F.S

Sensitivity: 2.0±0.004mV/V

Ingress protection: IP67

High Quality Material Advantage

Robust Construction

Alloy steel has a higher strength-to-weight ratio compared to other materials, allowing the load cell to withstand heavy loads without deformation or failure.The material's consistent mechanical properties enable more reliable and repeatable measurements.Designed with a robust construction, making them resistant to external shocks and vibrations, thus ensuring long-term durability.

IP67 Protection Ingress Advantages

Glue seal, can do laser welding

The white adhesive provides a strong bond between the components, ensuring a reliable and durable seal. Laser welding ensures precise and accurate sealing, resulting in a tight and reliable bond. Laser welding creates a hermetic seal, preventing any ingress of moisture, dust, or other contaminants.both white adhesive sealing and laser welding sealing offer advantages in terms of adhesion, flexibility, precision, durability, and aesthetics for shear beam load cells.

Customer Case

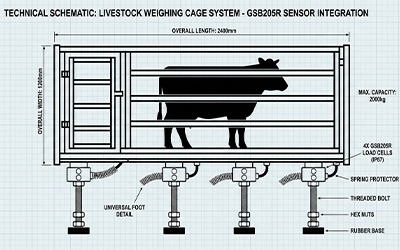

GSB205R shear beam load cell for livestock scale


Our client, a leading livestock management company, was facing challenges in accurately weighing their livestock. They required a reliable and efficient solution to ensure accurate weight measurement for various animals, such as cattle, pigs, and sheep. The client wanted a system that could handle the dynamic loads and movements of the animals during weighing, while providing precise and consistent measurements.

Problems faced by customers include

The client faced several challenges in their livestock weighing process. Traditional weighing methods, such as using platform scales, were not suitable for weighing animals due to their unpredictable movements. Additionally, the client needed a system that could withstand harsh environmental conditions, such as dust, moisture, and temperature variations. The existing weighing systems were also time-consuming and required manual intervention, leading to inefficiencies and potential errors.


To address the client's challenges, our team proposed the implementation of shear load sensors in their livestock scales. Shear load sensors are specifically designed to measure the weight of objects in motion, making them ideal for weighing animals. These sensors can accurately measure the dynamic loads and movements of the livestock, providing precise weight measurements.The shear load sensors were integrated into the livestock scales, which were designed to withstand harsh environmental conditions. The sensors were protected from dust and moisture, ensuring their longevity and accuracy. The scales were also equipped with a digital display system to provide real-time weight readings, eliminating the need for manual recording.
