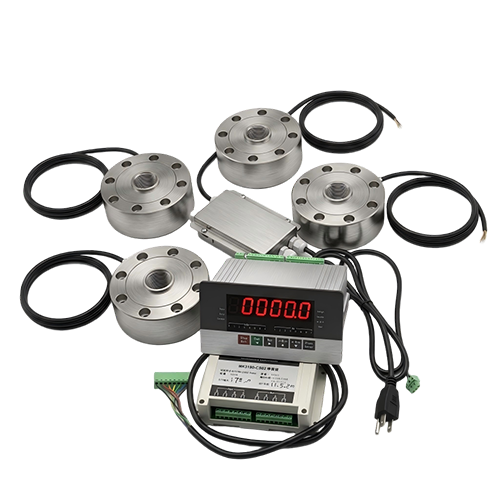

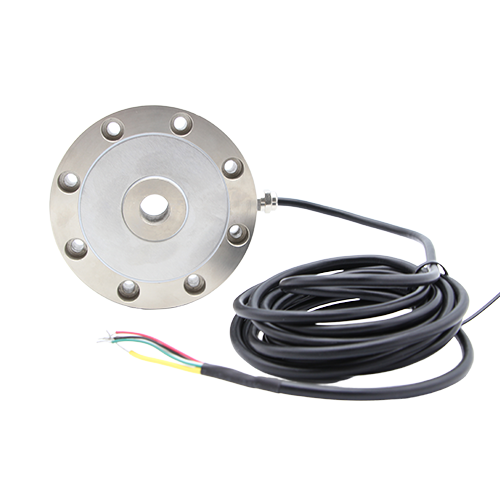

GSS406 Spoke Type Load Cell

GALOCE GSS406 is high accuracy Spoke Type Load Cell designed for both tension and compression force measurement. Nickel plated alloy steel can make protection class achieve IP66. the capacity is from 500kg to 100Ton. Spoken type load cells have a mounting rig and female center-thread, which makes them suitable for compression and tension applications.The Compression Load Cell is suitable for compression testing machines , tank weighing. hopper scale and special measuring equipment. Stainless steel 17-4PH material construction is optional. by the way, if you need to Custom Load Cell size and capacity, contact us now!

> Solution

Range: 0.05-200KN

Comprehensive Error: ±0.02-0.05%F.S

Sensitivity: 2.0±0.2mV/V

Ingress protection: IP66

Pressure head Advantage

More accurate

The steel ball applies a consistent downward force on the object, ensuring that it is in full contact with the weighing platform. This eliminates any air gaps or uneven distribution of weight, which can lead to inaccuracies in the measurement.

load-deflection resistance Advantages

Distributed Load Sensing

The spoke-type weighing sensor is designed to distribute the load evenly across multiple spokes. This ensures that the weight is accurately measured regardless of the position of the load on the sensor. The distributed load sensing capability helps to minimize the impact of bias load on the measurement accuracy.

Customer Case

GSS406 spoke type load cell for pressure testing machine


Our customer, a leading manufacturer of pressure testing machines, was facing challenges in accurately measuring and monitoring the pressure exerted during their testing processes. These machines are widely used in various industries, such as automotive, aerospace, and manufacturing, to ensure the quality and safety of products. The existing load cells used in their machines were not providing precise and reliable measurements, leading to inaccurate test results and potential safety risks. To overcome these issues, the customer approached us for a solution.

Problems faced by customers include

The customer encountered several problems with the current load cells used in their pressure testing machines. Firstly, the load cells were unable to withstand high-pressure environments, resulting in frequent breakdowns and the need for frequent replacements. This not only increased maintenance costs but also caused delays in their testing processes. Secondly, the load cells lacked accuracy and stability, leading to inconsistent and unreliable pressure readings. As a result, the customer was unable to ensure the quality and reliability of their products, which was a significant concern for their clients


To address the customer's challenges, we proposed the use of spoke-type load cells in their pressure testing machines. These load cells are specifically designed to withstand high-pressure environments and provide accurate and stable measurements. The key features of the spoke-type load cells include: High-pressure resistance: The load cells are constructed using robust materials and advanced engineering techniques, allowing them to withstand extreme pressure conditions without any damage or breakdowns. Accuracy and stability: The load cells are equipped with high-precision strain gauges and advanced signal processing technology, ensuring accurate and stable pressure measurements. This enables the customer to obtain reliable test results and maintain the quality of their products.
