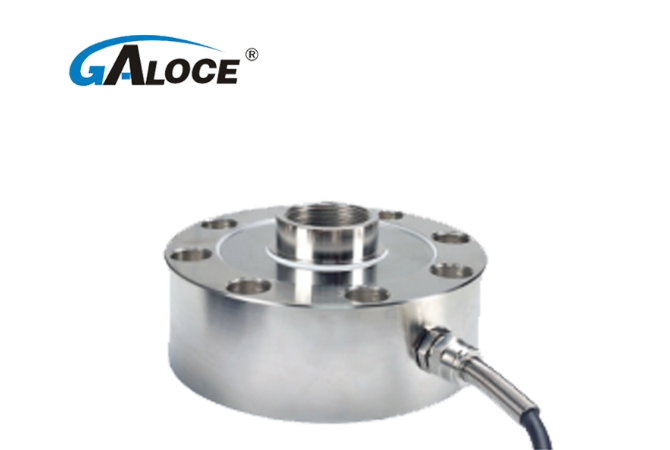

GSS406 Spoke Type Compression Load Cell
The GSS406 is an exceptionally rigid, low-profile spoke-type compression and tension load cell designed to manage massive loads ranging from 500kg up to 200 Tons. Crafted from high-strength nickel-plated alloy steel (stainless steel option available) with rugged rubber sealing, the GSS406 provides high accuracy (0.05% F.S.) and extreme resistance to side loads and deflection. It is the gold standard for silos, batching plants, and materials testing applications.
One-Stop Weighing Solutions
Maximize automation efficiency with our pre-configured, pre-tested hardware bundles:
01
PLC/DCS Signal Integration
GSS406 + GT202 (Anti-Interference Transmitter): Converts raw signal to 4-20mA, 0-10V. Eliminates frequency inverter harmonics for distant PLC transmission.
02
Digital Control Systems
GSS406 + Display Indicator (GSI307/GSI309-2): Real-time display with 2-way relay outputs, peak hold, one-key tare, and RS485 communication protocols.
03
Multi-Point Vessel Scale

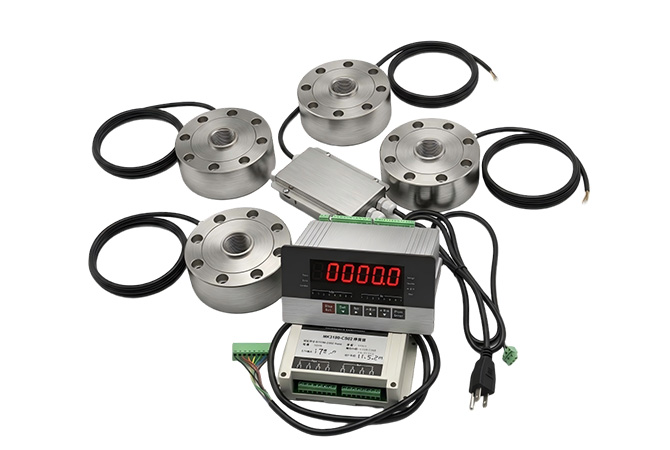

4x GSS406 + Junction Box + Indicator: Sync multiple loading points for silos, heavy hoppers, and large industrial storage tanks.
04
Mobile Force Testing
GSS406 + Handheld GSI305T: A portable, rugged measurement kit for labor safety inspection and on-site material testing.
Technical Specifications
|
Parameter
|
Specification
|
|
Rated Capacity (量程)
|
0.5, 1, 2, 3, 5, 7, 10, 15, 20, 25, 30, 50, 60, 100, 200 (Ton)
|
|
Comprehensive Error
|
± 0.05% ~ 0.1% F.S.
|
|
Rated Output
|
2.0 ± 1.0% mV/V
|
|
Zero Balance
|
± 1.0% F.S.
|
|
Input/Output Resistance
|
380 ± 10 Ω (or 750 ± 15 Ω) / 350 ± 3 Ω (or 700 ± 5 Ω)
|
|
Safe/Ultimate Overload
|
150% F.S. / 200% F.S.
|
|
Cable Specification
|
4-Wire Shielded Cable (<5t: 3m; ≥5t: 6m)
|
|
Protection Class
|
IP65 (Splash-proof & Dustproof)
|

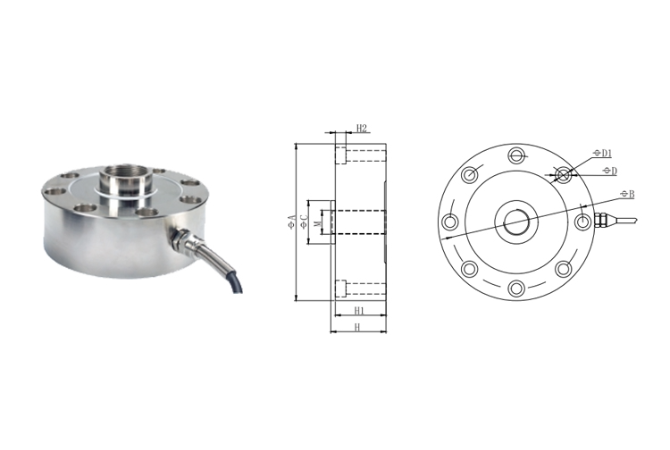

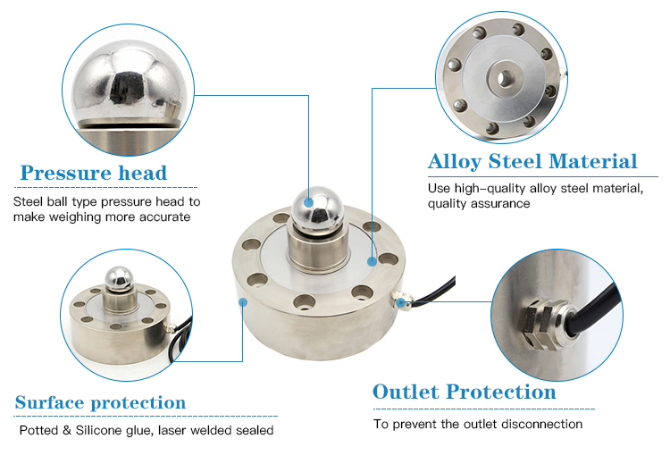

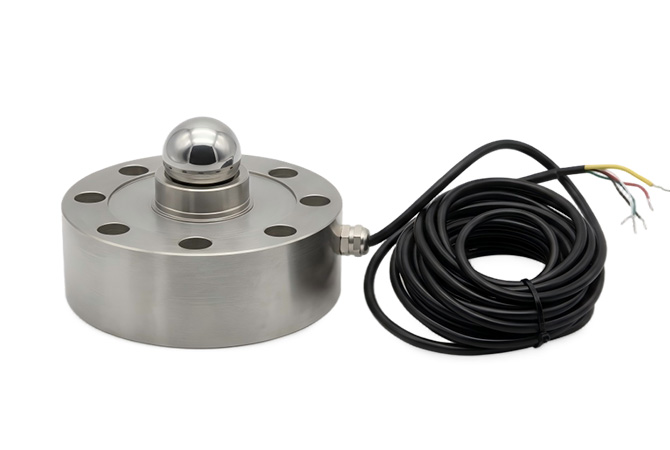

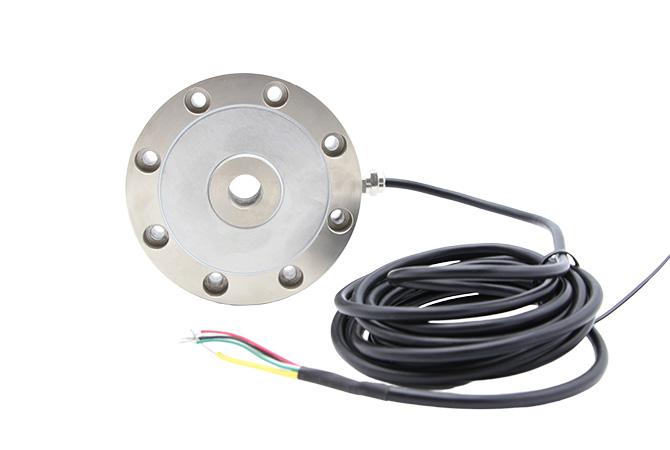

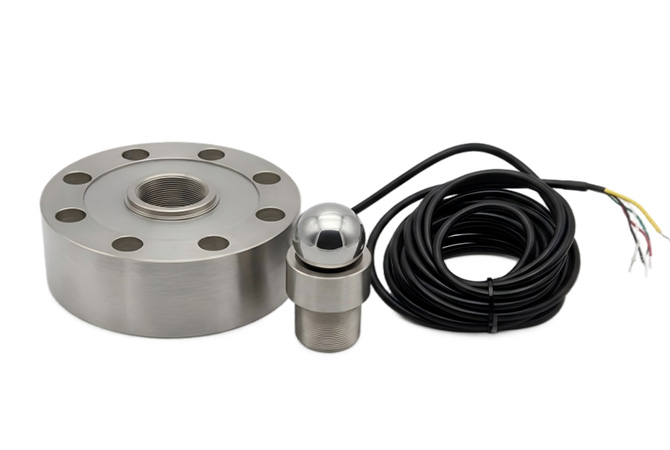

⚙️ Mechanical Integration & Installation: The GSS406 is designed with 8 perimeter counterbored holes on the outer ring for bottom plate fixation. The center threaded hole acts as the single primary force point. We offer an optional **Weighing Head (凸型压头)** to protect the center hole and concentrate load forces vertically.
Core Industry Applications

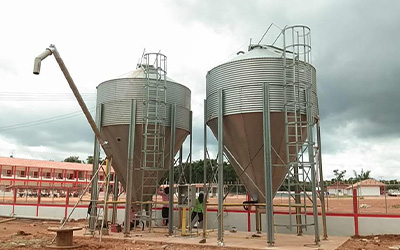

Silos, Tanks & Hoppers
Ideally suited for weight monitoring in heavy bulk storage structures due to its ultra-high rigidity and anti-deflection design.

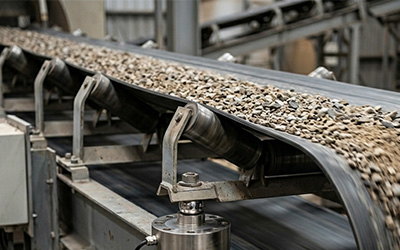

Industrial Conveyor & Belt Scales
Perfect for continuous bulk material weighing with excellent resistance to horizontal mechanical vibrations.

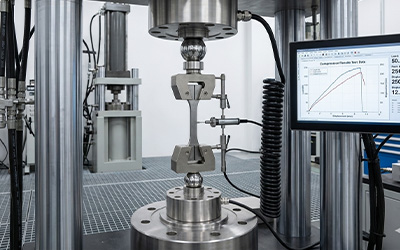

Materials Mechanics Testing
Capable of both high-capacity compression and tensile strength monitoring in hydraulic testing benches.

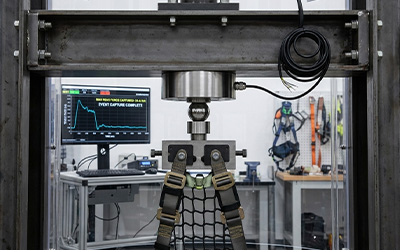

Labor Protection Safety Equipment
Perfect for safety-harness and security net tension testing where explosive, sudden forces must be captured precisely.
Bespoke Engineering Services
We support high-level customized options for extreme industrial environments:
Full Alloy Steel Body
Special Threads & Hole Sizes
Extra Cable Lengths (up to 50m)
High-Temp Stability (up to 150°C)
Custom Dome Weighing Head Fittings
Dual-Output redundant circuits
Frequently Asked Questions
1. What makes a spoke load cell ideal for tanks and hoppers compared to S-type cells?
Silos and heavy tanks are prone to wind force, thermal expansion, and mechanical shifting. The spoke design (GSS406) features an ultra-low profile and exceptionally high structural rigidity, providing superior resistance to lateral, non-axial forces that would bend an S-type cell.
2. What are the benefits of pairing GSS406 with the GT202 transmitter?
In industrial plants, high-power motors and frequency inverters generate intense electromagnetic noise. Our GT202 single/multi-channel transmitter is engineered with special anti-harmonic filters, stabilizing the 4-20mA/0-10V signal for error-free PLC/DCS connection.
3. Can the GSS406 measure both tension and compression?
Yes. GSS406 is designed as a bidirectional (tension and compression) sensor. For tension testing setups, we can customize corresponding rod-end bearings or eye bolt attachments for you.
4. Why does the cable length vary based on the capacity?
To minimize line resistance and signal decay on massive setups, capacities under 5 Tons are standard with a 3m shielded cable, whereas capacities of 5 Tons and above come with a thick 6m cable designed for large-scale steel structure wiring.
