GSL301 S-Type Tension & Compression Load Cell
The GSL301 is a highly versatile S-beam tension and compression load cell manufactured from premium nickel-plated alloy steel. Supporting bidirectional force measurement across an extensive capacity range of 5kg to 20 Tons, it offers professional-grade precision (±0.02% ~ 0.05% F.S.). Equipped with a robust rubber seal (IP65 protection) and a 4-core shielded cable, GSL301 is specifically engineered for long-term stability and high resistance to off-center loads.

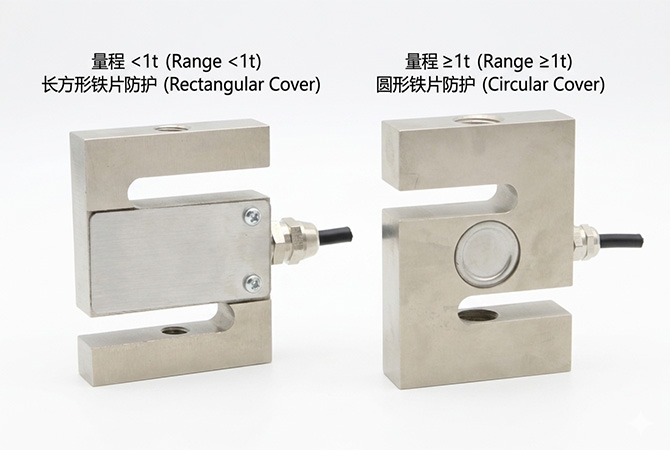

Mechanical Protection Layout
To optimize structural integrity and sealing protection based on capacity, GSL301 features two distinct design variations:
Capacity < 1 Ton
Equipped with **Rectangular Metal Plate Protection** for compact, highly sensitive micro-tension tasks.

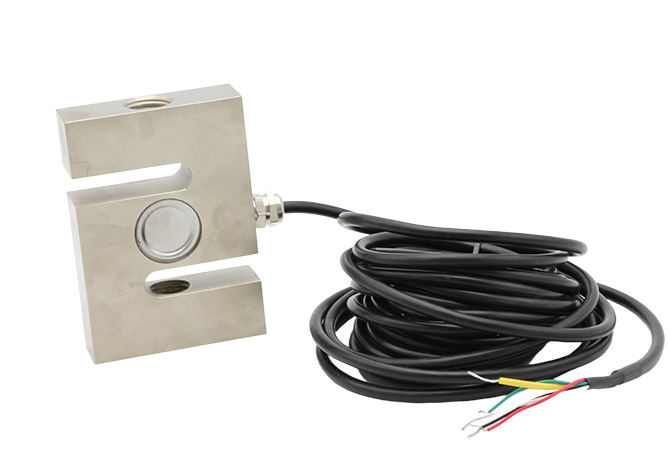

Capacity ≥ 1 Ton
Equipped with **Circular Metal Plate Protection** to withstand rugged heavy-duty industrial force limits.
Technical Specifications
|
Parameter
|
Specification
|
|
Rated Capacity
|
0.05, 0.1, 0.2, 0.3, 0.5, 1, 1.5, 2, 2.5, 3, 5, 7, 10, 15, 20, 30, 50, 75, 100, 200 (kN)
|
|
Comprehensive Error
|
± 0.02% ~ 0.05% F.S.
|
|
Rated Output
|
2.0 ± 1.0% mV/V
|
|
Zero Balance
|
± 1.0% F.S.
|
|
Input/Output Resistance
|
380 ± 10 Ω / 350 ± 3 Ω
|
|

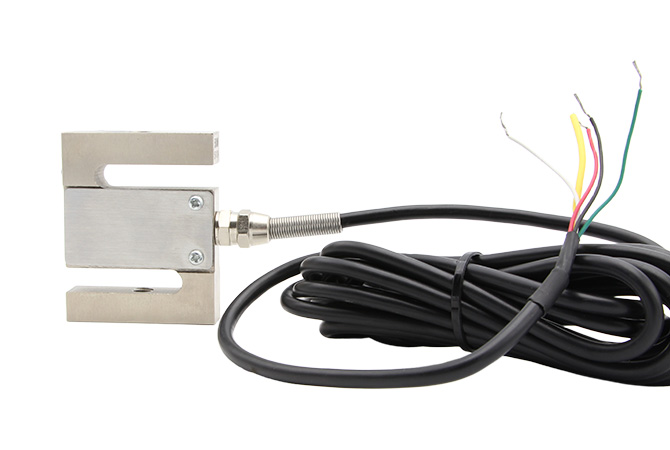

Cable Wiring Code
|
Red: Exc+ | Black: Exc- | Green: Sig+ | White: Sig- (4-Wire Shielded)
|
|
Cable Length
|
Capacity < 5t: 3m | Capacity ≥ 5t: 6m
|
|
Protection Rating
|
IP65 Waterproof
|
Core Industry Applications

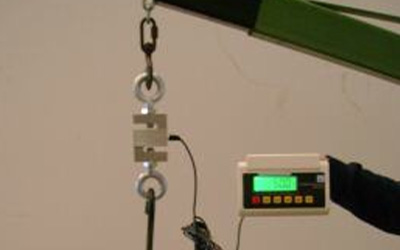

Hook & Crane Scales
Designed for suspended tension force measurement in overhead logistics and heavy material lifting.

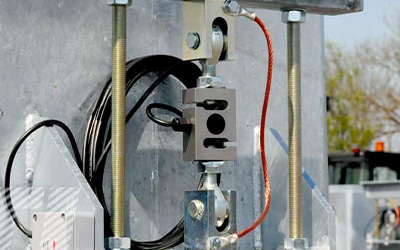

Hopper & Batching Scales
Ensures accurate component weight tracking in automated industrial batching and blending bins.

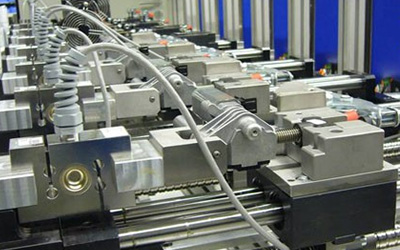

Conveyor Belt Scales
Provides precise continuous weight measuring of raw materials on high-speed conveyor lines.

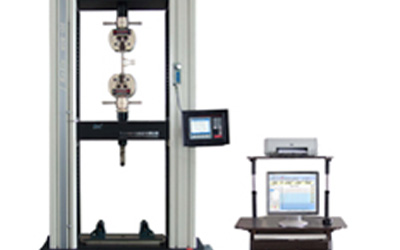

Mechanical Testing Machines
Suitable for tensile testing, compression strength verification, and materials research in laboratories.

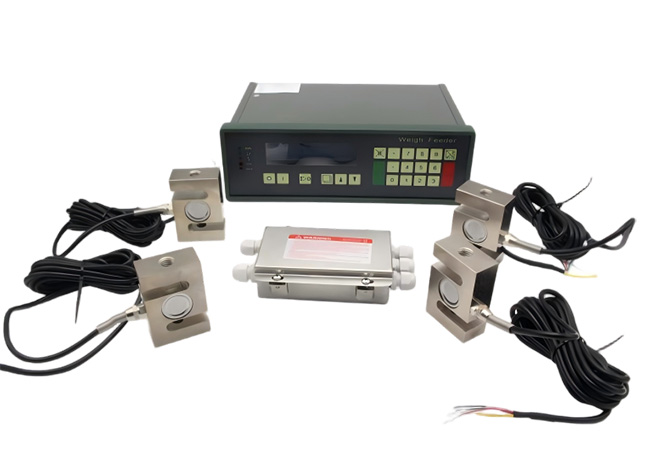

Complete Weighing & Force Systems
Maximize GSL301's performance with our pre-tested, industry-recommended system combinations:
PLC/DCS INTEGRATION
GSL301 + GT202 Anti-Interference Transmitter
Converts mV signal to standard analog outputs (4-20mA, 0-10V, 0-5V). Highly resistant to inverter harmonics, making it perfect for long-distance data transmission to PLC/DCS systems.
FORCE TESTING
GSL301 + GSI315T Handheld Indicator
A mobile, handheld measurement kit ideal for field tensile test applications, dynamic force monitoring, and on-site mechanical troubleshooting.
DISPLAY SYSTEMS
GSL301 + GSI307 / GSI309-2 Indicators
The standard industrial setup for stationary packing scales and batching systems requiring bright digital displays and control relays.
🚨 Critical Mounting Guide: We provide matched Eye Bolts (吊环) for pure tension applications. If transverse or lateral forces (横向力) are present in your setup, please request Universal Joint/Rod Ends (万向节) to prevent side-load damage to the sensor.
Full Range Customization Services
We offer bespoke engineering options to match GSL301 precisely with your mechanical design:
Custom Thread Sizes & Pitch
High-Temp Resistance Modifications
Special Cable Lengths Up to 50m
Industry-Specific Terminals (JST, Molex)
Explosion-Proof Options (Intrinsic Safe)
Matched Sets with Brackets
Frequently Asked Questions
1. How do I choose between Eye Bolts and Universal Joints?
If your application exerts a straight, purely vertical pull, standard Eye Bolts (吊环) are ideal. However, if there are any lateral or side forces, you must use Universal Joints/Rod Ends (万向节) to absorb the non-axial loads and protect the cell from shearing damage.
2. Why does the GSL301 have different metal cover designs depending on capacity?
Sensors rated under 1 Ton feature a rectangular metal cover to minimize footprint and maintain sensitivity for low-range calibration. High-capacity versions (1 Ton and above) utilize a robust circular plate cover to handle extremely high loads without compromising structural sealing.
3. Can I connect GSL301 directly to a PLC without a transmitter?
No, standard PLCs cannot directly read the raw mV signal of a load cell without a specialized weighing module. We strongly recommend bundling the GSL301 with our **GT202 single-channel anti-interference transmitter** to convert the output to a stable 4-20mA or 0-10V analog signal.
4. Is GSL301 suitable for high-vibration conveyor belts?
Yes. GSL301 is engineered with high repeatability and excellent resistance to off-center loads. Its robust alloy steel structure and rubber-sealed protection absorb mechanical vibration, ensuring stable data for packaging and belt scales.
