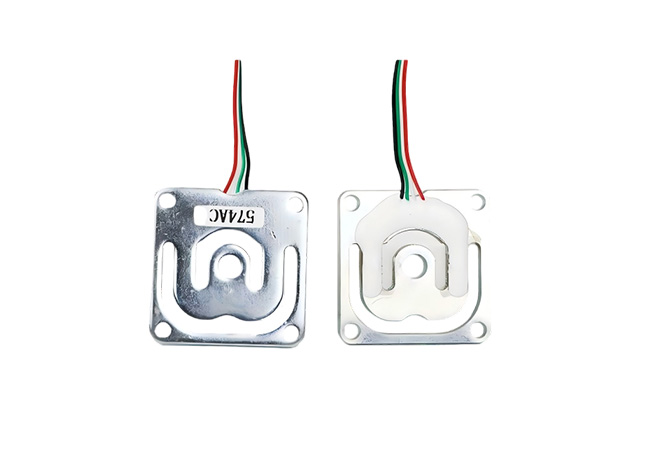

GML670 Micro Load Cell

5,10,30,50,75,100,150,200kg

Ultra-Thin Profile

34x34mm footprint with 1.0mm thickness. Ideal for space-limited IoT devices.

Manganese Steel

High fatigue resistance and excellent spring-back for long-term precision.

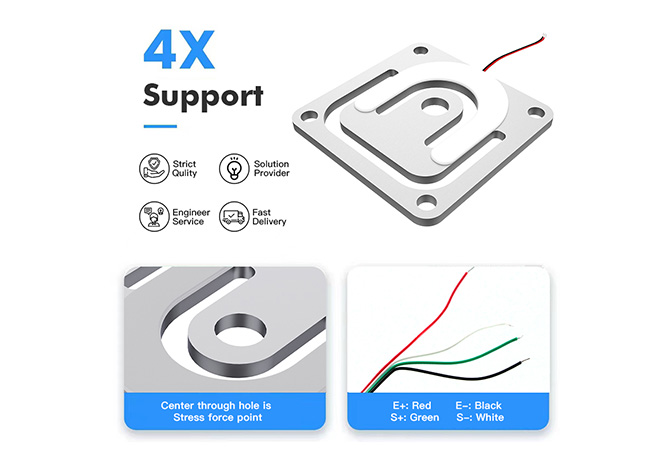

Full/Half Bridge

Flexible 3-wire or 4-wire configurations to match your circuit design.

Smart Application Scenarios

Optimized for Body Scales, Retail Shelves, Cat Litter Boxes, and Ag-Drones.

Tailored Customization

Bespoke services for cable lengths, terminal types, capacity, and dimensions.

Global Compliance

CE, RoHS, REACH, and ISO 9001 certified for international market access.

Get Quotes

Product Introduction

The GML670 Micro Load Cell is a high-precision, ultra-low profile weighing sensor specifically engineered for the smart technology era. Crafted from premium Manganese Steel, this sensor offers exceptional elasticity and fatigue resistance. Whether you are designing the next generation of smart scales, retail shelves, or specialized agricultural equipment, the GML670 delivers stable, accurate weight data in the most space-constrained environments.

CE CERTIFIED ROHS COMPLIANT REACH READY ISO 9001:2015

Technical Parameters

Specification	GML670 (Full Bridge)	GML670/670A (Half Bridge)
Rated Capacity	5, 10, 20, 30, 50, 75, 100, 150, 200 (kg)	10, 30, 50, 75 (kg)
Rated Output	1.0 ± 0.2 mV/V	1.0 ± 0.15 mV/V
Comprehensive Error	± 0.05% F.S.	± 0.1% to ± 0.2% F.S.
Material	High-Quality Manganese Steel
Input/Output Resistance	1000 ± 10 Ω	1000 ± 10 Ω
Excitation Voltage	5 - 12 V DC	5 - 10 V DC
Compliance	CE, RoHS, REACH, ISO 9001 Certified

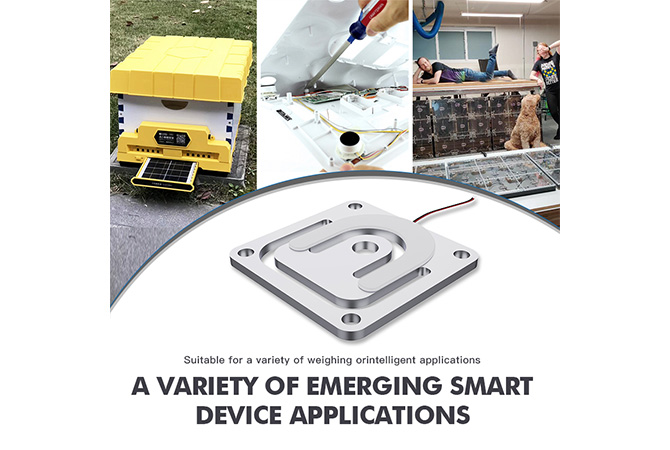

Targeted Smart Applications

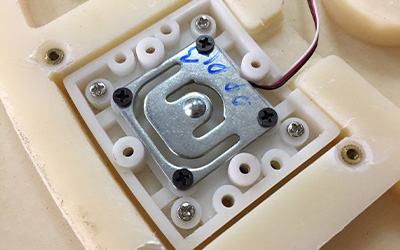

Smart Body Scales

The core sensor for high-end body fat scales, providing precise personal health metrics with a minimal footprint.

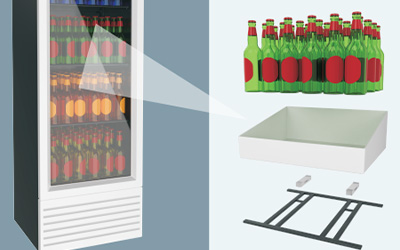

Smart Retail Shelves

Enables gravity-sensing inventory tracking for unmanned stores and automated vending machine restocking.

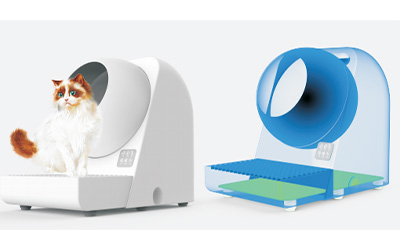

Smart Pet Technology

Essential for smart cat litter boxes and automated feeders to monitor pet weight and ensure operation safety.

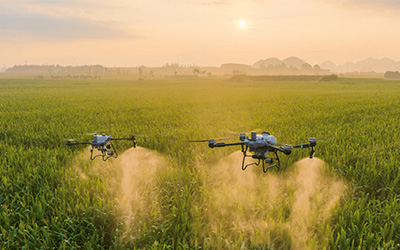

Agricultural Drones

Real-time weight monitoring for tank payloads, ensuring precise spray volume control for crop protection.

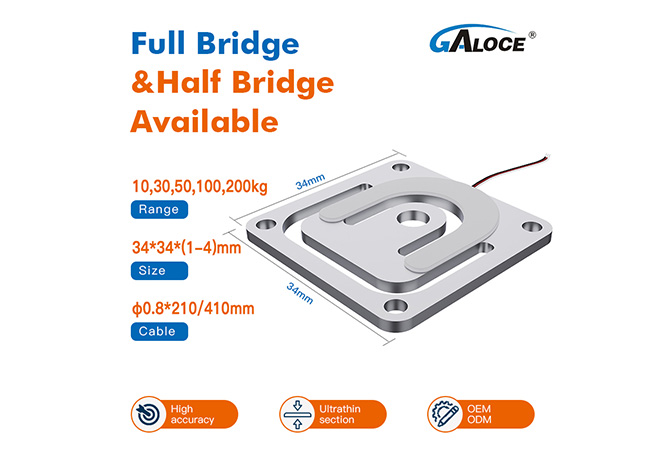

Compact Dimensions

Standard Footprint: 34.0mm x 34.0mm

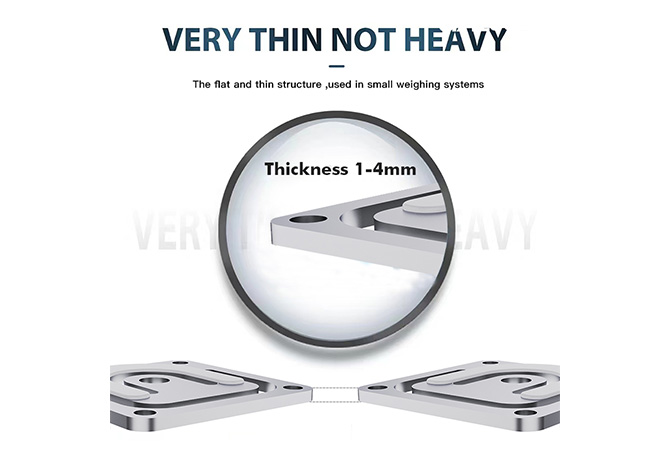

Ultra-thin height (1.0mm - 8.3mm) optimized for integration into various IoT hardware shells.

Flexible Customization Services

We offer full support to tailor the GML670 to your unique engineering environment:

Custom Dimensions & Profiles

Capacity Range Up to 200kg

Half-Bridge Set Matching

Custom Terminals (JST, Molex)

Bespoke Cable Lengths

OEM/ODM Branding Support

Frequently Asked Questions

1. What are the primary smart applications for the GML670?

GML670 is highly optimized for the IoT sector. Its core applications include smart body fat scales, gravity-sensing retail shelves, smart pet tech (like automated cat litter boxes), and weight monitoring for agricultural protection drones.

2. Why is Manganese Steel used in GML670 instead of other materials?

The GML670 uses high-grade Manganese Steel because of its superior elasticity and high fatigue limit. This ensures the sensor can return to zero accurately after repeated loading, which is critical for the long-term reliability of smart devices.

3. Does GALOCE provide certification for international markets?

Yes, we provide full quality assurance for global buyers. Our GML670 sensors are CE, RoHS, and REACH certified, and our manufacturing processes comply with ISO 9001:2015 standards.

4. Can I request specific connectors for my assembly line?

Absolutely. We provide "plug-and-play" solutions by customizing the terminals (e.g., JST, Molex, or customized headers) and cable lengths to match your PCB or drone flight controller perfectly.

5. How does the GML670 perform in agricultural drone applications?

In drone applications, the GML670's Manganese Steel structure provides excellent anti-vibration performance. It helps the flight system monitor tank depletion in real-time, allowing for precision spraying and payload balance.
