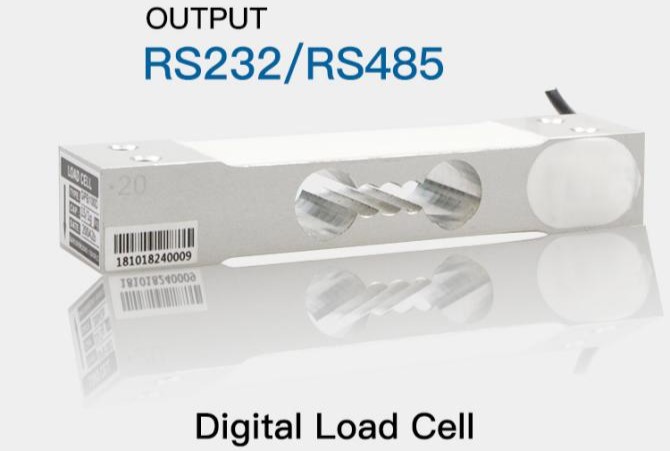

GPB100D Digital Single Point Load Cell

RS232 RS485 Modbus Digital Load Cell C3

Integrated Digital RS485/RS232

Built-in digital module with direct RS485/RS232 output. Supports platforms up to 250x350mm.

Factory Calibrated (Plug & Play)

Pre-calibrated at the factory. Eliminates the need for on-site calibration, saving time and labor costs.

Gravity & Division Adjustment

Adjust gravity acceleration or division value remotely via software without re-calibration.

Efficient Two-Command Access

Fast integration using only "Zero" and "Read Weight" commands. Instant data acquisition.

Anodized Aluminum Alloy

High-strength aluminum construction with a professional anodized surface for superior durability.

Smart Industry Optimized

Specifically designed for Smart Shelves, Gravity Cabinets, and Automated Waste Recycling.

Get Quotes

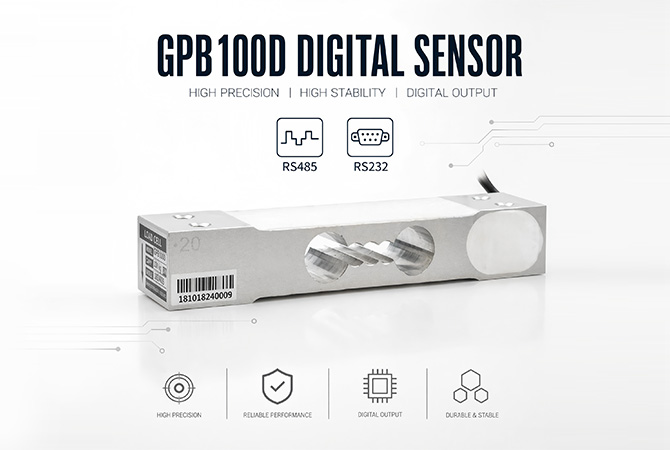

GPB100D Smart Digital Single Point Load Cell

The GPB100D is an intelligent digital load cell specifically optimized for the IoT retail and smart recycling industry. By integrating high-precision A/D conversion directly within the sensor, it outputs standard RS232 /RS485 Modbus RTU signals. This eliminates the need for external weighing indicators, simplifies multi-sensor bus networking, and provides robust anti-interference performance in complex smart hardware environments.

SMART INTEGRATION

Why Choose GPB100D for Your IoT Project?

Direct Digital Bus: RS232/ RS485 Modbus RTU output.
Multi-Channel Ready: Connect multiple sensors to one bus.
C3 Precision: 0.02% accuracy for precise inventory.
All-in-One Design: Built-in 24-bit A/D converter.
Interference Free: Digital signal is resistant to EMI.
Plug & Play: Simplified wiring for smart cabinets.

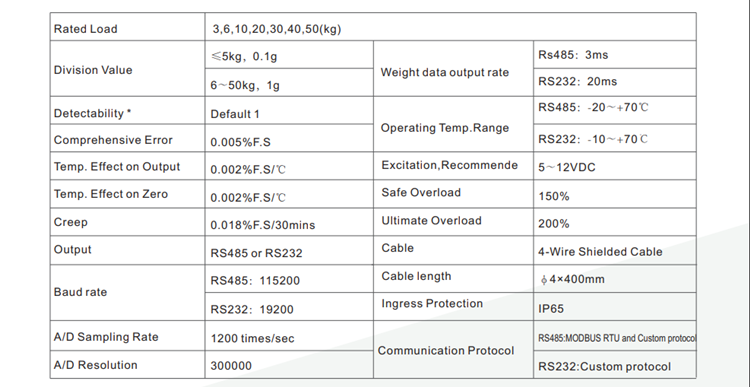

Technical Specifications

Parameter	Specification
Rated Capacity	3, 6, 10, 20, 30, 40, 50 (kg)
Accuracy Class	C3
Interface / Protocol	RS232 /RS485 Modbus RTU
Comprehensive Error	± 0.02% F.S.
Baud Rate	9600 / 19200 / 38400 bps
Resolution	24-bit A/D Conversion
Material	Aluminum Alloy (Anodized)
Protection Class	IP65

Core Industry Applications

Smart Retail Shelves

Enables real-time gravity sensing for unmanned stores to track inventory depletion automatically.

Smart Gravity Cabinets

Integrated into refrigerated or room-temp smart vending cabinets for precise item identification.

Intelligent Waste Recycling

Digital weight data collection for automated trash sorting and rewarding recycling stations.

Automated Vending Systems

Ensures high-speed digital weighing for parcel sorting and industrial automated stockrooms.

Bespoke Digital Customization

We offer flexible digital solutions to fit your specific PCB and bus architecture:

Custom Communication Protocols

Specific Baud Rate & Address Settings

Tailored Terminal Connectors (JST, Molex)

Bespoke Shielded Cable Lengths

Special Load Point Calibrations

OEM Labeling & Smart Packaging

Frequently Asked Questions

1. Can I connect multiple GPB100D sensors to a single controller?

Yes. Using the RS485 Modbus RTU protocol, you can assign a unique slave ID to each GPB100D, allowing you to monitor dozens of shelves or cabinet slots through just one bus line.

2. Why is a digital load cell better for smart retail than an analog one?

Smart retail environments often have significant electrical noise from refrigerators or motors. GPB100D's digital output is immune to this noise, ensuring stable inventory data without requiring high-cost shielded cabling.

3. Does the GPB100D require an external weighing transmitter?

No. The GML100D has a built-in A/D converter and transmitter. It outputs weight data directly in digital format, which can be read by a PLC, PC, or micro-controller.

4. What is the communication distance for the RS485 bus?

The GPB100D can reliably transmit digital data over the RS485 bus for distances up to 1000 meters, far exceeding the limits of traditional analog weighing cables.

5. Do you provide technical support for Modbus integration?

Yes. We provide complete Modbus address mapping and technical protocols to help your software team integrate the sensor quickly into your smart shelf or cabinet system.

Ready to Power Your Smart IoT Project?

Inquire today for GPB100D Digital Solutions and technical integration support.

Request Your Digital Solution Quote
