GSB205R 4-Piece Shear Beam Load Cell Kit

C3 Load Cell Solution for Livestock Scales

C3 High Precision

Industry-leading 0.02% accuracy for reliable heavy-duty weighing in warehouses and silos.

IP67 & Anti-Corrosion

Fully sealed for outdoor livestock scales and harsh, humid industrial environments.

Ready-to-Use 4pc Kit

Includes 4 sensors, waterproof junction box, and a digital indicator for instant installation.

Livestock Dynamic Optimization

Specialized for precise weighing of cattle, pigs, and sheep, even while moving.

Bespoke Engineering Services

Custom cable lengths, wireless transmission, and specialized mounting hardware options.

Rugged Industrial Strength

High-strength alloy steel build for reliable tank, hopper, and logistics platform scales.

Get Quotes

GSB205R Shear Beam Load Cell Kit

The GSB205R is a high-performance alloy steel shear beam load cell, engineered for the most demanding weighing environments. Whether you are measuring dynamic loads for livestock or managing heavy inventory in industrial silos, the GSB205R provides industry-leading C3 accuracy (0.02% error) and robust durability. Its professional-grade anti-corrosion coating and IP67 protection make it the definitive choice for outdoor and humid applications.

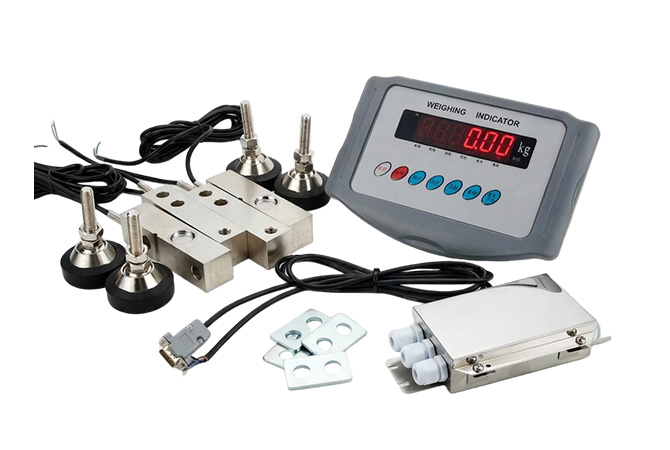

COMPLETE READY-TO-USE KIT

All-in-One Weighing Solution

Save time and ensure compatibility with our pre-configured GSB205R kit. Each package includes:
• 4x GSB205R Shear Beam Sensors (Capacity options from 0.1 to 5t)
• 1x Waterproof Stainless Steel Junction Box
• 1x High-Visibility Digital Weight Indicator
• Factory Calibrated: Ready for immediate installation and use.

Technical Specifications

Parameter	Specification
Rated Capacity	0.1,0.2,0.3,0.5,1,2,3,5(t)
Accuracy Class	C3 (0.02% Comprehensive Error)
Sensitivity	2.0 ± 0.004 mV/V
Protection Rating	IP67 (Waterproof & Dustproof)
Material	High-Strength Alloy Steel with Anti-Corrosion Coating
Operating Temp.	-20°C to +70°C
Safe Overload	150% F.S.

Engineered for Harsh Environments

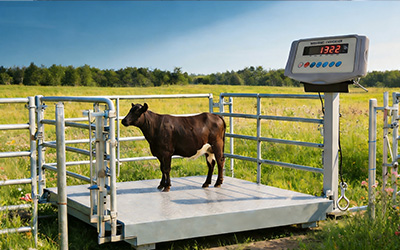

Livestock & Animal Scales

Advanced dynamic weighing algorithm for precise measurement of cattle, pigs, and sheep, even while moving.

Floor & Platform Scales

Reliable heavy-duty weighing for warehouses, logistics hubs, and shipping docks.

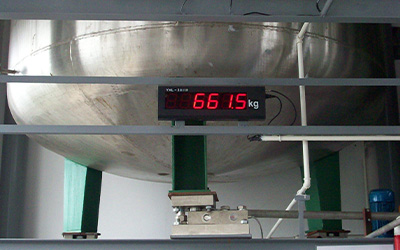

Tank, Hopper & Silo Systems

Accurate inventory control for industrial tanks and silos with excellent lateral load resistance.

Bespoke Engineering Services

We tailor the GSB205R to meet your specific industrial or agricultural needs:

Custom Capacity Calibration

Special Anti-Corrosion Jackets

Wireless Indicator Options

Bespoke Cable Lengths

Custom Terminal Connectors

OEM Labeling & Branding

Frequently Asked Questions

1. Is the GSB205R suitable for outdoor cattle scales?

Yes. The GSB205R features an IP67 waterproof rating and a specialized anti-corrosion coating, making it highly resistant to animal waste, cleaning chemicals, and harsh outdoor weather conditions.

2. Does the indicator support "Dynamic Weighing" for moving animals?

Absolutely. Our digital indicator is pre-programmed with a dynamic filtering algorithm that "locks" the weight accurately even if the cattle or sheep are moving on the scale.

3. Can I use this kit for a 5-ton platform scale?

Yes. By using 4 units of our 2-ton or 3-ton GSB205R sensors, you can easily build a highly stable and accurate 5-ton floor scale with a safe overload margin.

4. What is the communication distance for the indicator?

The standard cable length provided is 5 meters per sensor, but we offer customization for much longer distances or even wireless transmission solutions.

5. How difficult is the installation of the kit?

It is designed for "Plug & Play." Simply mount the sensors, connect them to the junction box, and plug the box into the indicator. It arrives pre-calibrated from the factory.

Ready to Upgrade Your Weighing System?

Get factory pricing on the GSB205R Complete Load Cell Kit today.

Request a Quote & Technical Data
