GPB100R High Precision Single Point Load Cell

Aluminum Single Point Sensor for Smart Shelves & Beehive Scales

High Precision (0.02% F.S.)

C3 accuracy class. Ensures stable weighing for smart and commercial scales.

Mounting Bracket Included

Available with GPB100-ZJ bracket for simplified installation and enhanced load protection.

IP65 Protection Rating

Anodized aluminum alloy build. Waterproof and dustproof for indoor and outdoor use.

Core Smart Scenarios

Proven performance in Smart Shelves, Beehive Monitoring, Medical and Retail Scales.

Bespoke Services

Custom cable lengths, terminal connectors, load capacities, and housing modifications.

Single Point Technology

Parallel beam structure allows for accurate measurement even with off-center loads.

Get Quotes

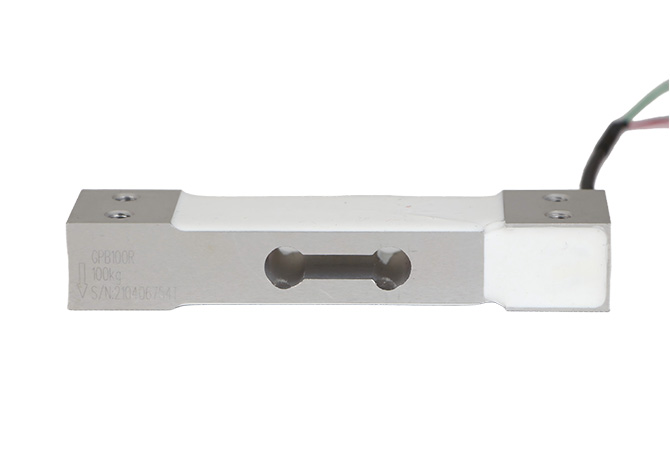

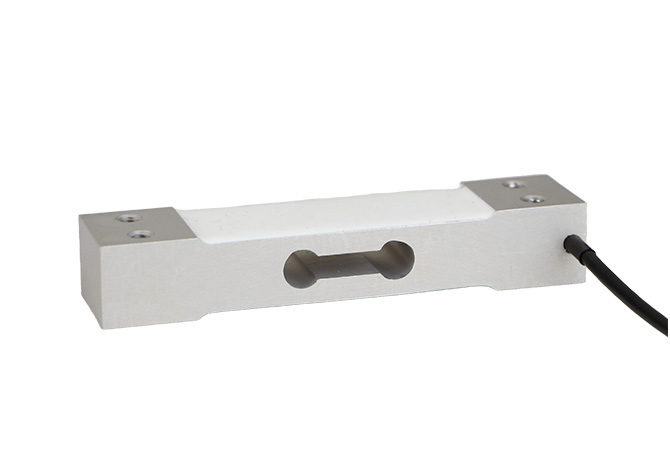

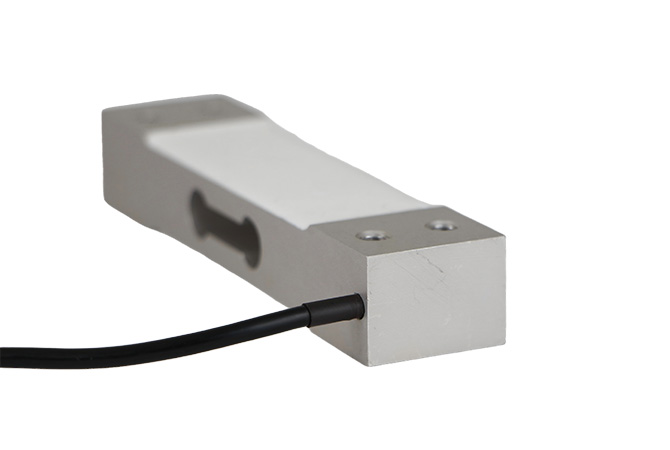

GPB100R High-Precision Single Point Load Cell

The GPB100R is a premium parallel-beam single-point load cell, widely recognized for its high accuracy and long-term stability. Crafted from anodized aluminum alloy, it features an IP65 protection rating, making it the perfect choice for diverse weighing tasks from smart retail to industrial automation. Its design allows for precise measurements even under off-center loading conditions.

ONE-STOP SOLUTION

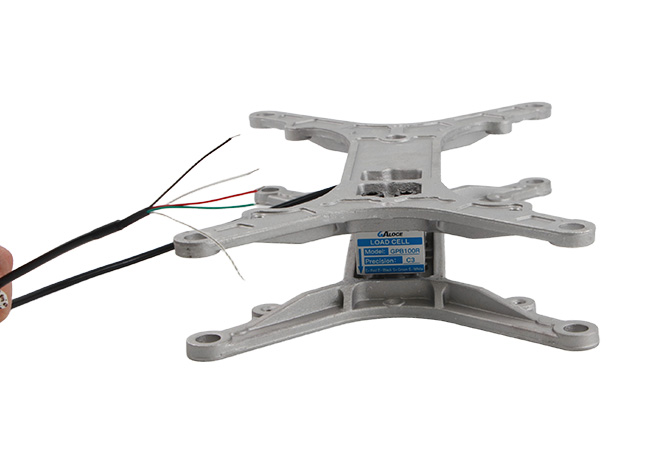

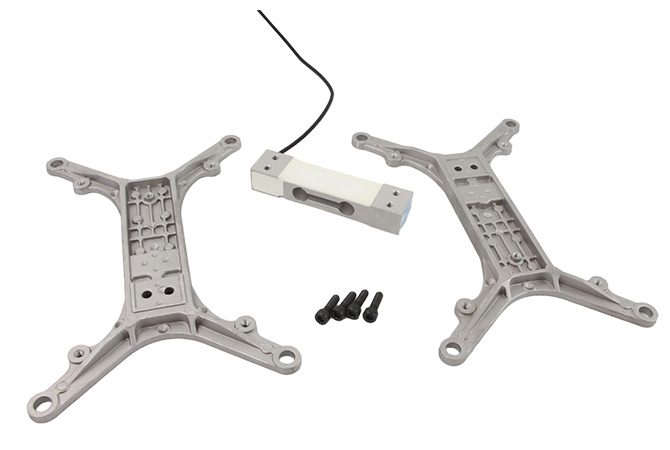

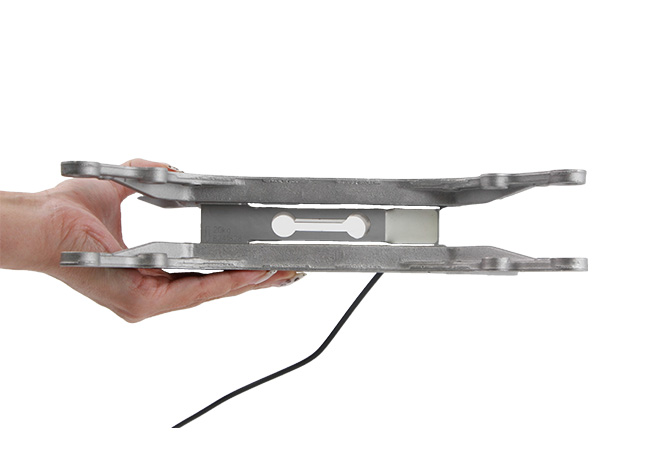

GPB100R Sensor + GPB100-ZJ Weighing Bracket

Maximize your system's performance by pairing the GPB100R with the GPB100-ZJ mounting kit. The original bracket ensures the sensor is perfectly aligned, prevents torque damage, and simplifies the installation process for beehive scales and smart shelves.

Technical Specifications

Parameter	Specification
Rated Capacity	3, 5, 10, 15, 20, 30, 40, 50, 100 (kg)
Accuracy Class	C3
Rated Output	2.0 ± 0.2 mV/V
Comprehensive Error	± 0.02% F.S.
Input/Output Resistance	405 ± 10Ω / 350 ± 3Ω
Max. Platform Size	250 x 350 mm
Material	Aluminum Alloy (Anodized)
Protection Class	IP65 Waterproof & Dustproof

Targeted Applications

Smart Retail Shelves

Enables real-time gravity sensing and inventory tracking for unmanned stores.

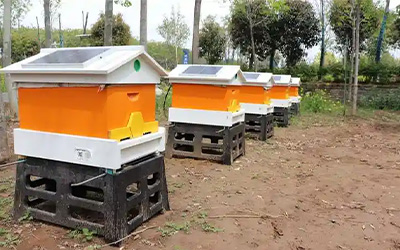

Beehive Weighing

Monitor honey production and colony health remotely with weather-resistant precision.

Commercial Scales

The industry standard for bench scales, pricing scales, and retail equipment.

Medical Weighing

Integrated into hospital beds and portable scales for accurate patient monitoring.

Flexible Customization Services

We offer comprehensive customization to ensure the GPB100R fits your specific engineering requirements perfectly:

Custom Physical Dimensions

Wider Capacity Range Selection

Special Load Point Modifications

Custom Terminals (JST, Molex, etc.)

Bespoke Cable Lengths & Shielding

OEM/ODM Branding & Packaging

Frequently Asked Questions

1. Why is the GPB100-ZJ bracket essential for high-accuracy weighing?

The bracket ensures the load is always applied vertically to the center-point of the sensor. It eliminates side forces and torsion, which are the main causes of measurement error and mechanical fatigue.

2. Is the GPB100R suitable for outdoor beehive monitoring?

Yes. With its IP65 rating and anodized aluminum finish, it is specifically designed to handle humidity, dust, and temperature variations common in outdoor apiculture.

3. What is the maximum platform size for this sensor?

The GPB100R supports a maximum platform size of 250mm x 350mm. Using a platform within these limits ensures the best accuracy and lifespan for the parallel beam structure.

4. Do you provide CAD drawings for the sensor and bracket assembly?

Yes, we provide 2D and 3D CAD drawings for our customers to help with their mechanical integration and housing design.

5. Can I order the sensor with a pre-installed terminal?

Absolutely. We can customize the cable length and pre-install various industrial-grade terminals (like JST, Molex, or Dupont) based on your PCB interface.
