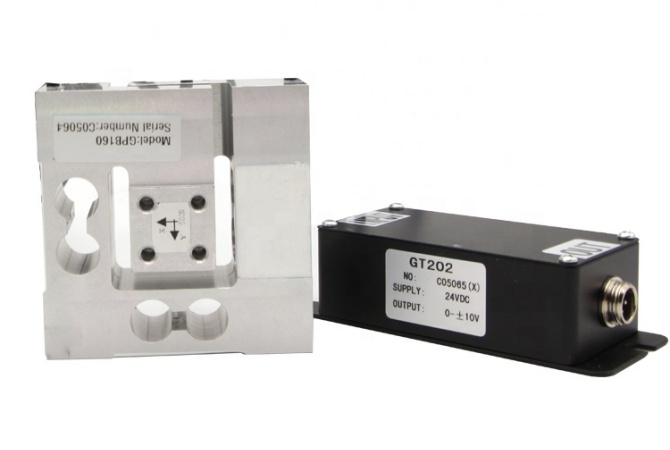

GPB160 3-Axis Force Sensor

Three Dimensional Load Cell

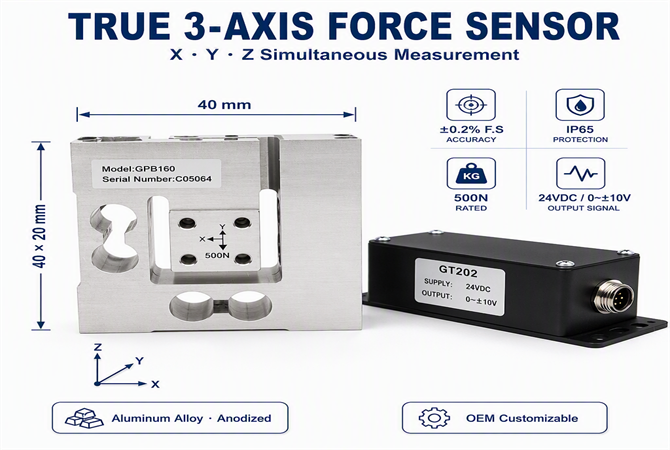

GPB160 Key Features

True 3-Axis Measurement

Measures compression and tension in X, Y, Z simultaneously from one compact sensor — no multi-sensor stacking.

±0.2% F.S Accuracy

Comprehensive error including linearity and hysteresis, stable for precision force control loops.

Aluminum Alloy, Anodized

Surface anodized for corrosion resistance in demanding industrial environments.

Compact & Light

Only 40 × 40 × 20 mm and ~133 g — easy integration into robot wrists and test fixtures.

IP65 Protection

Dust-tight and protected against water jets for workshop and lab conditions.

OEM / Customizable

Custom rated load, cable length, connector and calibration per your application.

Get Quotes

GPB160 3-Axis Force Sensor | Three Dimensional Load Cell | GALOCE

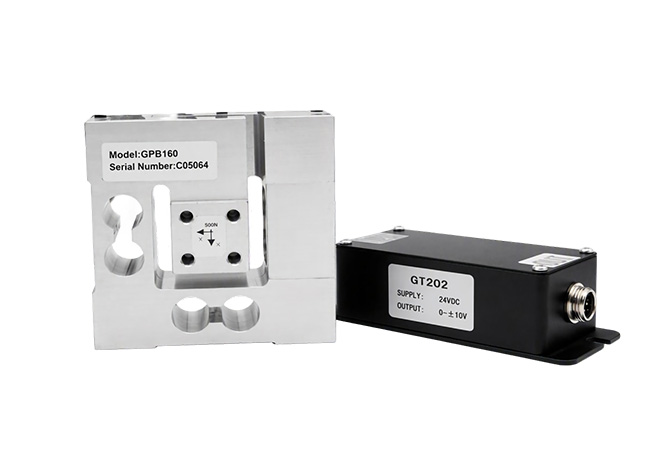

Product Overview

Three Directions, One Sensor

The GPB160 is a high-precision 3-axis force sensor designed for simultaneous measurement of compression and tension forces in the X, Y and Z directions. Constructed with premium aluminum alloy and surface anodized for superior corrosion resistance, it delivers exceptional reliability in demanding industrial environments.

With its compact 40mm × 40mm × 20mm footprint and IP65 protection rating, the GPB160 is ideal for robotics, automated testing systems, and multi-directional force measurement applications.

Typical pairing: GPB160 connects directly to a GALOCE weighing indicator (e.g. GSI413) or a PLC / DAQ system via its 4-wire bridge output. Ask us for a matched sensor + indicator package.

Technical Specifications

GPB160 Specifications

Rated Load	10 / 20 / 30 / 50 (N) — X, Y, Z axes
Comprehensive Error	±0.2% F.S
Rated Output	1.0 ± 0.5% mV/V
Zero Balance	±0.1 mV/V
Linearity / Hysteresis	±0.2% F.S
Creep (2 min)	±0.2% F.S
Input / Output Impedance	350 ± 10 Ω
Insulation Resistance	≥5000 MΩ (50 VDC)
Temp. Effect on Zero / Output	±0.2% F.S / 10°C
Compensated Temp. Range	-10°C ~ +40°C
Operating Temp. Range	-35°C ~ +70°C
Safe Overload	120% F.S
Excitation (Recommended / Max)	5-10 VDC / 15 VDC
Material	Aluminum Alloy (Anodized)
Ingress Protection	IP65
Cable Length	2 m standard (customizable)
Dimensions (L×W×H)	40 × 40 × 20 mm
Weight	Approx. 133 g

Nominal specifications at 25°C. Custom rated loads and cable options available on request — tell us your force range and connector preference when quoting.

Dimensions & Wiring

Integration Data

Dimensions (mm)

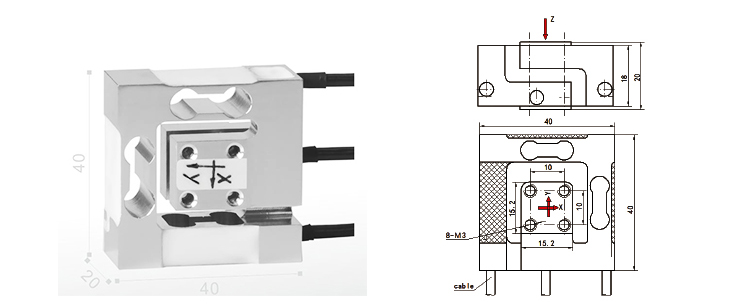

GPB160 3-axis force sensor dimension drawing 40 x 40 x 20 mm

40 × 40 × 20 mm · 4 mounting holes · M2 wiring connector

Wiring Code

Excitation +Red
Excitation -Black
Signal +Green
Signal -White
ShieldBare / Shield → Ground

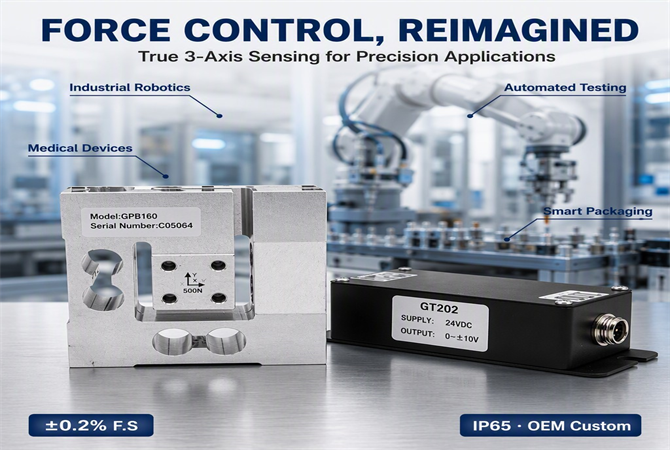

Key Applications

Built for Multi-Directional Force Tasks

Industrial Robotics

Force feedback, adaptive assembly, and precision force control.

Automated Testing

Multi-directional force monitoring for quality assurance.

Laboratory Research

Material mechanical analysis & multi-axis force experiments.

Medical Devices

Surgical robot force sensing and rehabilitation feedback.

Smart Packaging

Compression force detection and seal integrity testing.

Automotive Parts

Multi-dimensional loading and structural strength evaluation.

FAQ

Frequently Asked Questions

Can the GPB160 measure tension and compression at the same time?

Yes. The GPB160 is designed for simultaneous measurement of compression and tension forces in the X, Y and Z directions from a single sensor element.

What force ranges are available?

Standard rated loads are 10, 20, 30 and 50 N per axis. Custom ranges can be arranged for OEM projects — specify your working range when requesting a quote.

What is the output signal?

It outputs a mV/V bridge signal (rated output 1.0 ± 0.5% mV/V, 350Ω bridge). Connect it to a weighing indicator, PLC analog module or DAQ amplifier for further processing.

Is the sensor waterproof?

The GPB160 has an IP65 ingress protection rating — dust-tight and protected against water jets, suitable for workshop and lab environments.

Can GALOCE customize the cable or connector?

Yes. Cable length (standard 2 m), connector type and rated load are customizable. We also supply matched indicators and calibration services for OEM projects.

Get a Quote for GPB160

Tell us your force range, output interface and mounting requirements — we respond with pricing and a matched sensor + indicator package within 24 hours.

Request a Quote →

Email: info@galoce.com · WhatsApp: +86 17791581668
