Cattle Scale Load Cell Kit | GSB205R Livestock Weighing

Livestock Weighing Solution

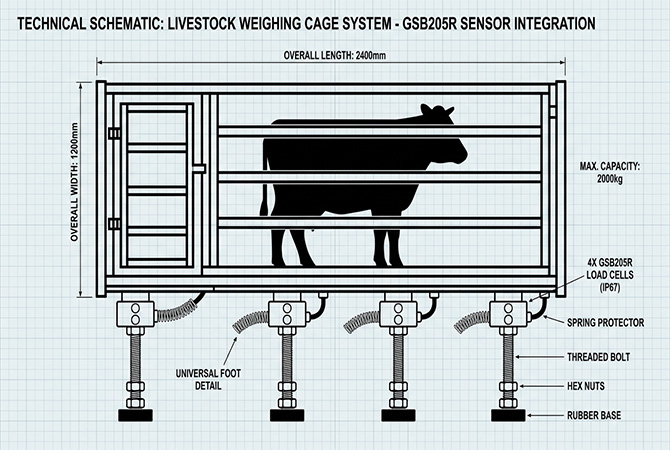

The Load Cell Kit Inside Professional Cattle & Animal Scales

The GSB205R is a high-performance alloy steel shear beam load cell, engineered specifically for the demands of livestock weighing. Whether you are building a walk-through cattle scale, a group-pen pig weigher or a small sheep/lamb platform, the GSB205R delivers industry-leading C3 accuracy (0.02% error) and rugged durability. Its professional anti-corrosion coating and IP67 protection make it the definitive choice for outdoor pens, wash-down bays and humid barn environments where generic load cells fail.

Each kit is factory-matched: all four sensors are selected and calibrated from the same batch so the corner-to-corner sensitivity stays consistent — the single most important factor for a stable, drift-free livestock scale.

Complete Ready-to-Use Kit

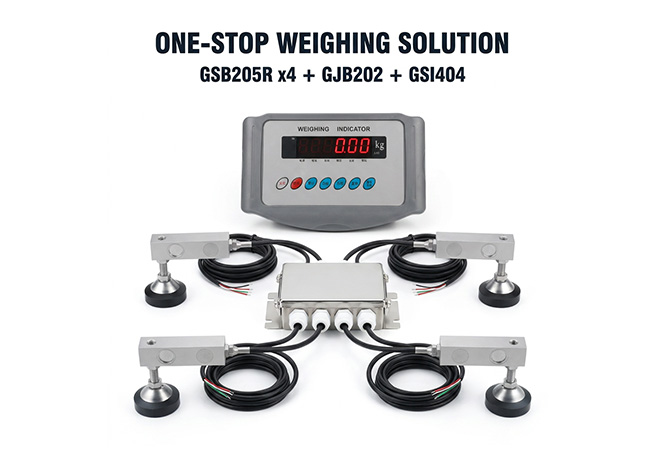

All-in-One Livestock Weighing Kit

Stop sourcing mismatched parts. The GSB205R livestock kit arrives as a complete, compatible package — saving integration time and guaranteeing the four corners read the same.

4×

GSB205R Shear Beam SensorsCapacity options 0.1t – 5t per cell, matched from one batch

1×

Waterproof Junction BoxStainless steel, IP67, sums the 4 bridges to one output

1×

Digital Weight IndicatorPre-programmed dynamic filtering for moving animals

✓

Factory CalibratedReady for immediate installation — no field calibration required

Technical Specifications

GSB205R Specifications

Rated Capacity	0.1, 0.2, 0.3, 0.5, 1, 2, 3, 5 (t)
Accuracy Class	C3 (0.02% Comprehensive Error)
Sensitivity	2.0 ± 0.004 mV/V
Protection Rating	IP67 (Waterproof & Dustproof)
Material	High-Strength Alloy Steel with Anti-Corrosion Coating
Operating Temperature	-20°C to +70°C
Safe Overload	150% F.S.
Typical Application	Cattle / pig / sheep scales, platform & pen weighers

Capacity Selection by Animal (reference)

Animal / Use	Suggested per-cell capacity	4-cell scale capacity
Adult cattle (cow / bull)	2t – 3t	8t – 12t (safe margin)
Calves / young stock	0.5t – 1t	2t – 4t
Group pig pen	0.5t – 1t	2t – 4t
Sheep / goat / lamb	0.3t – 0.5t	1.2t – 2t

Reference values only. Final selection depends on pen size, maximum simultaneous load and safety factor — our engineers will size the kit to your scale drawing.

Engineered for Livestock

Built for the Barn, the Pen and the Yard

🐄

Cattle Scales

Walk-through and squeeze-chute scales for beef and dairy. Dynamic algorithm weighs animals in motion — no need to calm or hold still.

🐽

Pig & Swine Scales

Group-pen and sorting-line weighers. IP67 resists slurry, wash-down and ammonia-rich air for long service life.

🐑

Sheep & Goat Scales

Small-platform and crate weighers for lambing, dosing and market prep. Sensitive 0.3–0.5t cells for light animals.

Also suitable for adjacent builds

The same GSB205R kit is widely used for floor & platform scales (warehouses, logistics docks) and tank, hopper & silo systems (feed inventory) — one kit family covers your full weighing range.

Bespoke Engineering

Tailored for Livestock Scale Builders

We customize the GSB205R kit to your scale design and brand:

Capacity CalibrationMatch any cell rating 0.1–5t to your pen load

Anti-Corrosion JacketsExtra coating for slurry / salt-air farms

Wireless IndicatorCable-free readout for mobile yards

Bespoke Cable LengthUp to long runs; standard 5m per sensor

Custom ConnectorsTerminal type to your harness

OEM LabelingYour brand on sensor, box & indicator

FAQ

Frequently Asked Questions

Is the GSB205R suitable for outdoor cattle scales?

Yes. The GSB205R carries an IP67 waterproof rating and a specialized anti-corrosion coating, making it highly resistant to animal waste, wash-down chemicals and harsh outdoor weather — ideal for pens, yards and feeding alleys.

Does the indicator support "Dynamic Weighing" for moving animals?

Absolutely. The digital indicator is pre-programmed with a dynamic filtering algorithm that "locks" the weight accurately even while cattle, pigs or sheep are moving on the platform — no need to calm the animal.

Can I build an 8–10 ton cattle scale with this kit?

Yes. Using four 2t or 3t GSB205R sensors gives a stable, accurate platform with a safe overload margin well above the typical adult-cattle load. We will confirm the exact combination from your scale dimensions.

What is the communication distance for the indicator?

Standard cable is 5 meters per sensor, but we offer much longer lengths or wireless transmission solutions for large yards and remote pens.

How difficult is installation?

Designed for plug-and-play: mount the four sensors, connect them to the junction box, plug the box into the indicator. The kit arrives factory-calibrated — no field calibration needed.

Build Your Livestock Scale with GSB205R

Tell us your animal type, pen size and target capacity — we return a matched 4-piece kit with drawings, CAD and lead time.

Get a Quote →
