Forklift Scale Load Cell Kit | GSB205R On-Board Weighing

Pallet Truck Weighing Solution

The Load Cell Kit Inside Professional Pallet Truck & Forklift Scales

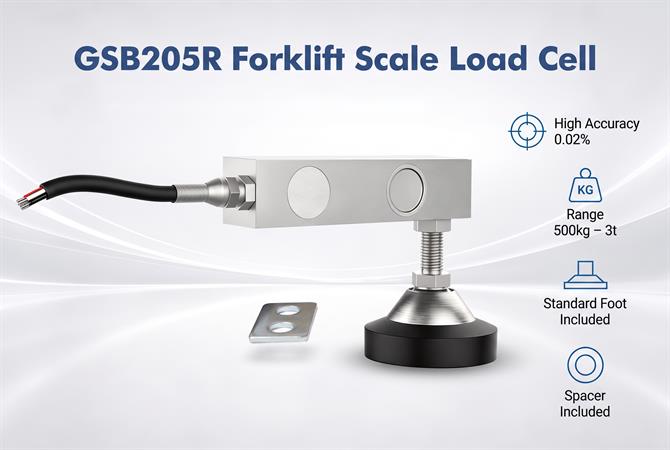

The GSB205R is a high-performance alloy steel shear beam load cell, engineered for the demands of manual pallet truck scales and hand pallet jacks (di niu). It is installed inside the fork-arm cavity so the truck weighs cargo while transporting — no extra floor scale required. With C3 accuracy (0.02% error), an IP67 rating and an anti-shock, compact structure, it is the definitive choice for the frequent bumping, dropping and over-lifting of daily warehouse handling.

Each kit is factory-matched: all four sensors are selected and calibrated from the same batch so corner-to-corner sensitivity stays consistent — the single most important factor for a stable, drift-free pallet truck scale. GALOCE supplies load cell kits for pallet truck / forklift scale manufacturers; we are a component supplier, not a finished scale brand.

We provide the load cells, junction box and indicator that build into your pallet truck scale — not the hydraulic pump, frame or finished truck. Tell us your fork-arm geometry and we size the kit.

How It Works

Weighing While You Transport

A pallet truck scale integrates the shear beam load cells inside the fork arms. Lift, sense, transmit, read — handling and weighing finish in one step.

LiftThe hydraulic hand pallet jack raises the load; goods pressure transfers into the fork-arm cavity.

SenseGSB205R shear beam cells inside the fork arm convert mechanical force into an electrical signal.

TransmitThe signal is summed by the GJB202 junction box and sent to the GSI413 weighing indicator.

DisplayThe indicator shows real-time cargo weight — no floor scale, handling + weighing in one step.

Why GSB205R Fits Pallet Truck

Built for the Hand Pallet Jack Working Condition

Strong Anti-ShockOptimized for dynamic impact load; reduces weighing drift from daily bumping.

Overload ProtectionWithstands frequent over-lifting on site; not easy to damage.

Compact DimensionSmall outline fits the limited fork-arm cavity; easy assembly for builders.

Stable Dynamic WeighingMoving-while-weighing mode stays stable even on uneven ground.

Wide Capacity 1–3t500kg–3t cells match most 1–3t hand pallet trucks; custom capacity available.

One-Stop KitCell + junction box + indicator supplied together; simpler sourcing for OEMs.

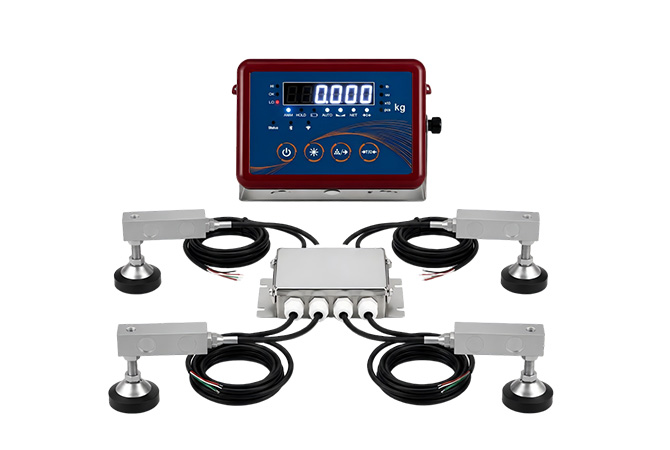

Complete Ready-to-Use Kit

All-in-One Pallet Truck Weighing Kit

Stop sourcing mismatched parts. The GSB205R pallet truck kit arrives as a complete, compatible package — saving integration time and guaranteeing the four corners read the same.

4×

GSB205R Shear Beam Sensors500kg – 3t per cell, matched from one batch for fork-arm cavity mount

1×

GJB202 Junction Box4-in-1-out, plastic or stainless steel, IP67, sums the 4 bridges to one output

1×

GSI413 Weight IndicatorPre-programmed dynamic filtering for moving pallet trucks

✓

Factory CalibratedReady for immediate installation — no field calibration required

Technical Specifications

GSB205R Specifications

Rated Capacity	500kg, 1t, 2t, 3t
Accuracy Class	C3 (0.02% Comprehensive Error)
Sensitivity	2.0 ± 0.004 mV/V
Protection Rating	IP67 (Waterproof & Dustproof)
Material	High-Strength Alloy Steel with Anti-Corrosion Coating
Operating Temperature	-20°C to +70°C
Safe Overload	150% F.S. (Shock-Resistant)
Typical Application	Pallet truck scale, hand pallet jack, forklift scale, fork-arm weighers

Also available as the GSB205 base model (same 500kg–3t range) for cost-sensitive builds. Final selection depends on fork-arm geometry and target capacity — our engineers size the kit to your drawing.

Capacity Selection

Match the Cell to Your Pallet Truck

Hand pallet truck rating	Suggested per-cell capacity	4-cell system capacity
1t pallet truck	500kg – 1t	2t – 4t
2t pallet truck	1t – 2t	4t – 8t
3t pallet truck	2t – 3t	8t – 12t (safe margin)

GSB205R range is 500kg–3t per cell. These are reference values — final capacity depends on fork-arm size, maximum load and safety factor.

Typical End-Use Scenarios

Where Pallet Truck Scales Are Used

📦

Warehouse & Logistics

Goods inbound / outbound weight checking — verify shipments without returning to a floor scale.

♻

Recycling Industry

Waste material weighing & counting for scrap, paper and plastic recovery yards.

🏭

Factory Workshop

Raw-material and finished-goods weight statistics on the production line.

✈️

Freight & Cargo Transfer

Quick cargo weight confirmation at transfer and dispatch points.

🔨

OEM Manufacturer

Pallet truck / hand pallet jack scale assembly with custom branding and specs.

Complete System & Typical Configuration

Load Cell + Junction Box + Indicator

We supply the complete matching spare parts for the pallet truck weighing system — one-stop sourcing for scale builders. Below is a typical GSB205R kit configuration.

Product	Model	Spec	Qty
Load Cell	GSB205R	500kg – 3t	4 pcs
Junction Box	GJB202	4-in-1-out, plastic, IP67	1 pc
Indicator	GSI413	Pallet truck weighing	1 pc
Total per kit			1 set

Stainless-steel GJB202 + GSI404-1 variant (with GSB205 cells) also available. Final quote on request.

OEM, ODM & Service

Tailored for Pallet Truck Scale Builders

Capacity & Dimension0.5–3t cells, custom outline to your fork-arm cavity

Cable LengthStandard 5m per sensor; longer runs available

Custom ConnectorsTerminal type to your harness

Technical SupportPallet-truck-scale installation & calibration guidance

Sample AvailableFor customer performance testing before mass order

OEM LabelingYour brand on sensor, box & indicator

FAQ

Frequently Asked Questions

Is the GSB205R suitable for hand pallet jack shock and bumping?

Yes. The GSB205R is optimized for the dynamic impact load of daily hand pallet jack handling — bumping, dropping and over-lifting. Its anti-shock structure reduces weighing drift and the 150% safe overload rating avoids easy damage on site.

Can it weigh accurately while the truck is moving?

Absolutely. The GSI413 indicator is pre-programmed with a dynamic filtering algorithm that keeps the reading stable while the truck travels and on uneven ground — no need to stop and settle.

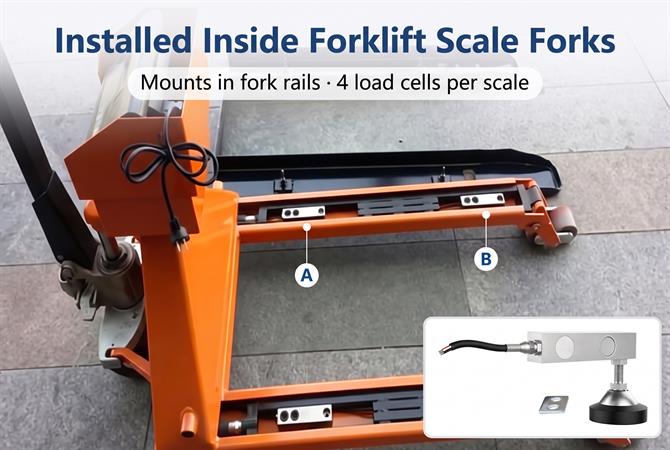

How is it installed inside the fork arm?

The GSB205R has a compact outline tailored to the limited fork-arm cavity. Mount the four cells, connect them to the GJB202 junction box, plug the box into the GSI413 indicator. The kit arrives factory-calibrated — no field calibration needed.

What capacity options do you offer?

GSB205R cells cover 500kg, 1t, 2t and 3t — matching most 1–3t hand pallet trucks. Custom capacity and dimension are available on request.

Do you supply the complete kit with junction box and indicator?

Yes. We supply the full matching system — GSB205R cells + GJB202 junction box + GSI413 indicator — and support OEM/ODM customization and samples for testing.

Build Your Pallet Truck Scale with GSB205R

Tell us your pallet truck rating, fork-arm geometry and target capacity — we return a matched 4-piece kit with drawings, CAD and lead time.
