Product Overview

The Display That Closes the Weighing Loop

The GSI413 is a cost-effective, plastic-housing weighing indicator that turns any compatible load cell into a complete weighing station. Through A/D conversion, it reads the millivolt signal from one or more load cells and displays the weight value directly — on a 0.8 inch 6-digit LCD in the standard (no-bracket) variant, or on a bright LED digital-tube display in the holder variant. With both AC and DC power options, a built-in rechargeable battery and a compact footprint, it is built for mobile and bench-top weighing alike.

GALOCE supplies the GSI413 as the standard indicator in our GSB205R forklift / pallet truck scale kits. It drives up to 4 × 350Ω load cells (or 8 × 700Ω cells), delivers stable readings on uneven floors, and communicates with printers, PCs, PLCs or handheld devices through your choice of serial interface.

Two Enclosure Variants

One Indicator, Two Form Factors

The GSI413 is offered in two enclosure variants that share the same core electronics, A/D performance and communication options. The only difference is the display technology and whether a stainless steel holder bracket is fitted.

Standard — LCD (No Bracket)Compact plastic housing with a 0.8" 6-digit LCD. Best for panel- or scale-mounted installations. See GSI413-1 / GSI413-2.

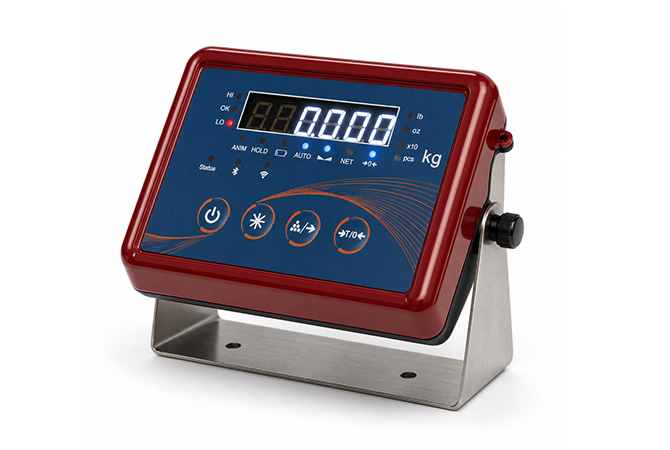

With Holder — LED Digital TubeBright LED digital-tube (numeric) display plus a stainless steel bracket/holder for bench, wall or vehicle mounting. See GSI413-J1.

Variant	Standard (no bracket)	With holder
Display	0.8" 6-digit LCD	LED digital-tube (numeric)
Bracket / Holder	Not included	Stainless steel bracket included
Typical Mounting	Panel / scale body	Bench / wall / vehicle
Electronics & I/O	Identical — 1,000,000 A/D, ±10mV input, Type-C battery, RS232/485/Wi-Fi/LAN/BT

Product Features

Why GSI413 Fits Your Scale

Manual / Automatic AccumulationBatch weighing and totalizing made simple for logistics and counting.

Type-C Charging + Li-BatteryBattery-powered operation for portable platform, pallet truck and outdoor weighing.

Programmable Zero TrackingKeep the zero point stable as temperature, vibration and drift change.

Programmable Digital FilterSuppress vibration and motion noise on forklifts, livestock scales and platform scales.

Multi-Country Weight Unitskg / lb / Jin (Chinese / Hong Kong / Taiwan) / Myanmar viss / PCS counting.

Flexible Serial ProtocolContinuous output, single-byte command, print output, Modbus-RTU or Modbus-TCP.

Animal, Hold & Counting ModesBuilt-in animal scale function, peak hold and piece-counting for versatile use.

Print OutputConnect a printer for tickets, labels and weighing records out of the box.

Technical Specifications

GSI413 Specifications

Input Signal Range	±10mV
A/D Resolution	1,000,000
A/D Conversion Speed	8 times/second
Supply Bridge Voltage	DC 3V; drives up to 4 × 350Ω load cells or 8 × 700Ω load cells
Display	Two variants: standard (no bracket) — 0.8 inch 6-digit LCD; with-holder version — bright LED digital-tube (numeric) display
Division Value	1 / 2 / 5 / 0.1 / 0.2 / 0.5 / 0.01 / 0.02 / 0.05 / 0.001 / 0.002 / 0.005 / 10 / 20 / 50 and more
Serial Communication Interface	RS232 / RS485 / Wi-Fi / LAN / Bluetooth optional
Standard Serial Output	Single channel COM1 RS232 (non-isolated)
Serial Communication Rate	2400 / 4800 / 9600 / 19200 bps
Serial Protocol	Continuous output / Print output / Single byte command / Modbus-RTU / Modbus-TCP optional
Weight Unit Selection	kg / lb / oz / Chinese Jin (J) / Hong Kong Jin (h) / Taiwan Jin (t) / Myanmar viss (u) / Quantity (PCS)
Built-In Battery	3.7V / 2200mAh rechargeable lithium battery
Charging Interface	Type-C, DC 5V 1A
Usage Temperature	-10°C to +40°C
Storage / Transportation Temperature	-25°C to +55°C
Relative Humidity	≤85% RH
External Dimensions	172 × 112.5 × 70 mm (L × W × H)
Net Weight	About 0.6 kg
Housing	Plastic housing (cost-effective); optional stainless steel bracket / holder
Power Supply	AC power or DC electricity

Applications

Built for Mobile and Bench Weighing

📦

Pallet Truck & Forklift Scales

Pairs with GSB205R load cells for hand pallet jacks, forklift attachments and on-board weighing in warehouses.

🚜

Platform & Logistics Scales

Portable platform scales, bench scales and shipping scales where a compact, battery-powered indicator is needed.

🐖

Animal Scales

Animal weighing mode with stable-read filtering makes it ideal for livestock, veterinary and farm weighing systems.

🧮

Counting & Checkweighing

Built-in counting, accumulation and HI/OK/LO checkweighing for parts counting and quality control.

Typical Pairing

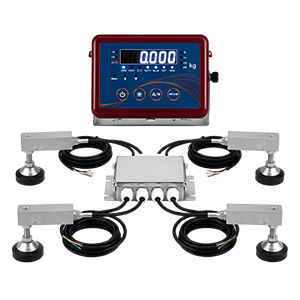

GSI413 + GSB205R + GJB202 = Complete Scale Kit

The GSI413 is the recommended indicator for the GSB205R shear beam load cell kit used in pallet truck scales, forklift weighers and portable platform scales.

4×

GSB205R Shear Beam Load Cells500kg–3t per cell, factory-matched for consistent corner output

1×

GJB202 Junction Box4-in-1-out, IP67, sums the 4 load cell signals into one cable

1×

GSI413 Weighing Indicator0.8" LCD (standard) or LED digital-tube (with holder), rechargeable battery, multiple serial outputs

✓

Factory CalibrationPlug-and-play installation for scale builders and OEMs

This is the same 4-piece kit configuration referenced in the GSB205R pallet truck / forklift scale page. Order the indicator alone, or ask us for a complete matched kit.

Select Accessories & Options

Configure GSI413 to Your System

Isolation Type RS232Isolated COM port for noisy industrial environments

Isolation Type RS485Long-distance, multi-drop factory networks

Bluetooth ModuleWireless link to phones, tablets or handheld terminals

Holder & Stainless Steel BracketBench / wall / vehicle mounting bracket

Wi-Fi / LAN PortCloud, ERP and remote monitoring connectivity

Mechanical Scale PartsMounts, feet, cables and junction boxes

Product Images

GSI413 Views

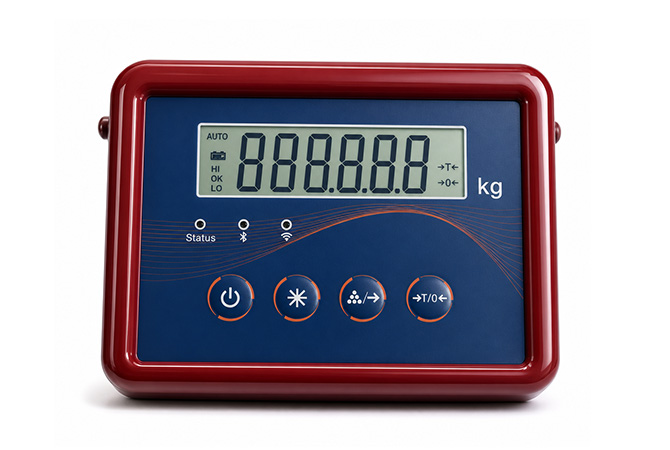

GSI413 front view with LCD display and touch keys — LCDStandard variant — front view (no bracket)

GSI413 angled view with LCD display — LCDStandard variant — back view (no bracket)

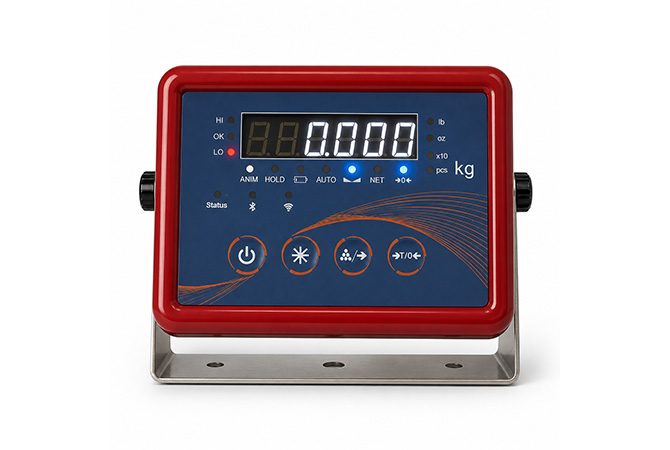

GSI413 with holder and LED digital-tube display — LEDWith-holder variant — LED digital-tube + bracket

FAQ

Frequently Asked Questions

Can the GSI413 drive multiple load cells?

Yes. The GSI413 bridge voltage is DC 3V and can drive up to 4 × 350Ω load cells or 8 × 700Ω load cells, making it suitable for 4-corner platform scales and pallet truck scale kits.

Is the GSI413 battery-powered?

Yes. It includes a built-in 3.7V/2200mAh rechargeable lithium battery and a Type-C charging port (DC 5V 1A). It can also run on AC/DC external power.

Which communication options are available?

Standard configuration is a single-channel RS232 output. Optional upgrades include isolated RS232, isolated RS485, Bluetooth, Wi-Fi and LAN. Protocols include continuous output, print output, single-byte command, Modbus-RTU and Modbus-TCP.

Does it support animal weighing?

Yes. The GSI413 has an animal scale mode that applies digital filtering to stabilize the display when weighing moving animals such as livestock or pets.

Can I use it for counting and checkweighing?

Yes. Built-in counting, accumulation, hold and HI/OK/LO checkweighing functions are included, so it covers parts counting and quality control applications without extra software.

Is the GSI413 the same indicator used in the GSB205R forklift scale kit?

Yes. The GSI413 is our recommended cost-effective indicator for the GSB205R 4-piece shear beam load cell kit, together with the GJB202 junction box, for pallet truck scales and forklift weighing systems.

Does the GSI413 come in LCD and LED versions?

Yes. The GSI413 is offered in two enclosure variants with identical electronics: the standard variant (no bracket) uses a 0.8" 6-digit LCD display and is suited to panel- or scale-mounted installations; the with-holder variant adds a stainless steel bracket and uses a bright LED digital-tube display for bench, wall or vehicle mounting. Tell us which variant you need when requesting a quote.

Get the GSI413 Indicator or Complete Kit

Tell us your scale type, load cell configuration and communication needs — we quote the GSI413 indicator alone or as a matched kit with GSB205R load cells.
