GMD305
  • GMD305

GMD305

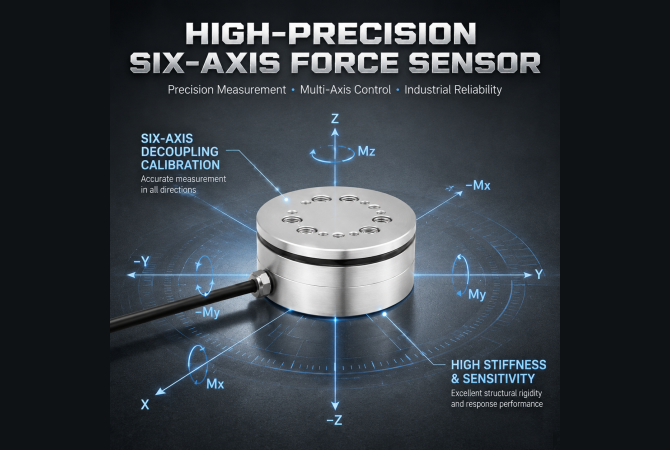

Small Six-Axis Force Sensor


  • Six-Axis Joint Calibration — Fx, Fy, Fz, Mx, My and Mz are calibrated as one integrated unit instead of six separate channels, so crosstalk between axes is fully suppressed and multi-axis data stays consistent.
  • Four Capacity Options in One Footprint — GMD305A (50 N), GMD305B (150 N), GMD305C (200 N) and GMD305G (500 N) share the same housing, so one mechanical interface covers several force levels and simplifies your design work.
  • Compact 46 mm Envelope — The Φ46 × H20.4 mm housing fits space-limited joint modules and end effectors; the small structure delivers high stiffness together with high sensitivity.
  • Ready to Integrate — RS485, RS422, USB or Ethernet interface (choose any one), with TCP, UDP, Modbus RTU, Modbus TCP and EtherCAT protocol support; 12–48 VDC supply, -10 to +80 °C operating range and IP64 protection.


Get Quotes
