GMD308
  • GMD308

GMD308

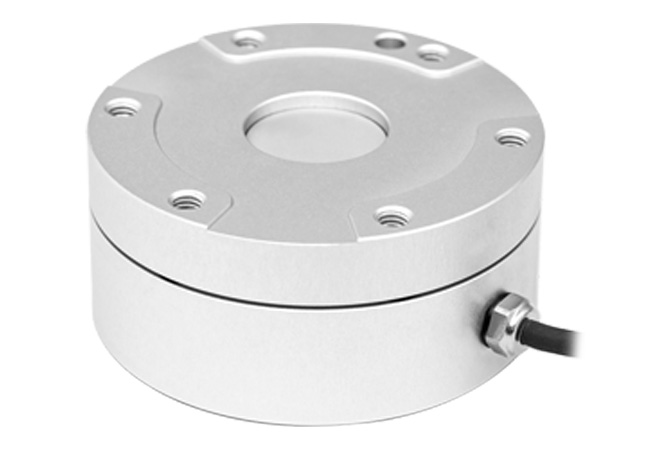

GMD308 Six-Axis Force Sensor


  • Built for Medical Testing and Aerospace Applications — Designed for medical test equipment, aerospace, automated test benches and other applications that demand repeatable, stable measurement.
  • High Stiffness and High Sensitivity — Structural rigidity and sensitivity are delivered together — two characteristics that usually trade off against each other in six-axis force sensor design.
  • Compact Φ57 × H30 mm Aluminum Body — An anodized aluminum alloy body weighing from only 0.12 kg, easy to integrate into robot arm joints and test equipment.
  • Four Capacity Options, 50 N – 500 N — GMD308A (50 N) / B (200 N) / C (350 N) / D (500 N) with rated moment from 2 to 14 N·m, covering several force levels in the same Φ57 mm body.
  • Six-Axis Joint Calibration — Fx, Fy, Fz, Mx, My and Mz are calibrated as one unit, so cross-axis interference is fully suppressed and multi-axis data stays consistent.
