GMD309
  • GMD309

GMD309

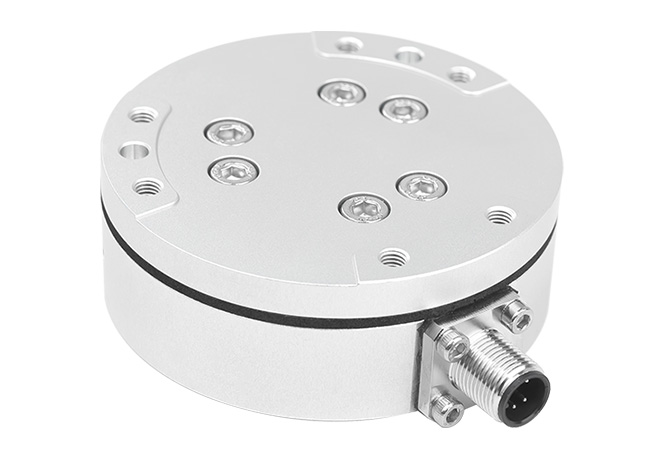

GMD309 Six-Axis Force Sensor


  • Designed for Dynamic Force Measurement — A 1000 Hz sampling rate with a six-axis strain gauge bridge for force and torque measurement in dynamic conditions such as wind tunnel testing and cutting and grinding force feedback.
  • Built-In Data Acquisition System, Digital Output — A high-precision embedded data acquisition and computing system is integrated inside the sensor body and outputs digitally, reducing external components and wiring.
  • Aerospace-Grade Aluminum Alloy Body — An aerospace-grade aluminum alloy body combined with a six-axis strain gauge bridge, balancing strength and weight.
  • High Stiffness and High Sensitivity — Structural rigidity and measurement sensitivity are delivered together, supporting both dynamic response and measurement resolution.
  • 50 N – 500 N, Moment to 18 N·m — Multiple capacity options in the Φ82 mm body, with axial Fz up to 700 N and rated moment from 2 to 18 N·m.
