I.Product Introduction

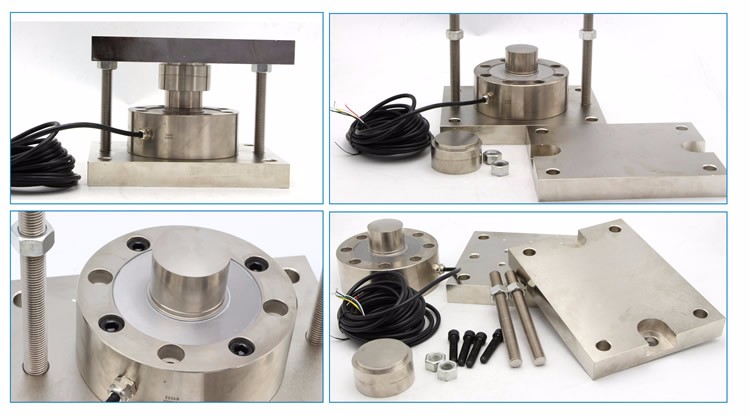

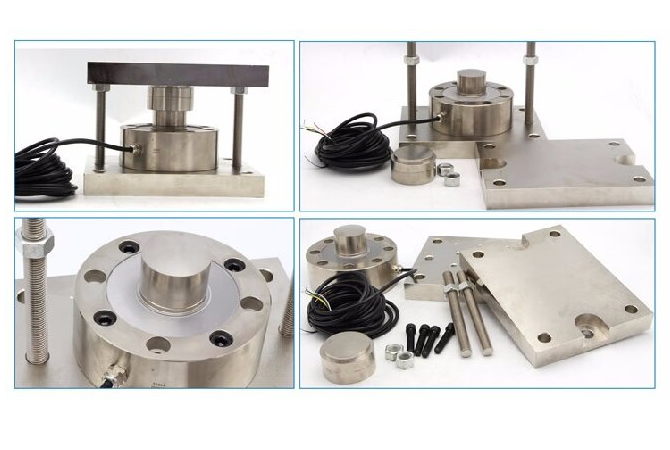

  The GWM400 weighing module is a robust and reliable solution for weighing applications in various industries. It is made

of alloy steel material, which ensures durability and longevity. The surface is nickel-plated, making it moisture-proof and

corrosion-resistant. The low height of the module makes it easy to install and reduces the risk of accidents. The limit bolts

on both sides of the module make it safer to use. The weighing sensor is of the spoke type, which enables a wide range of

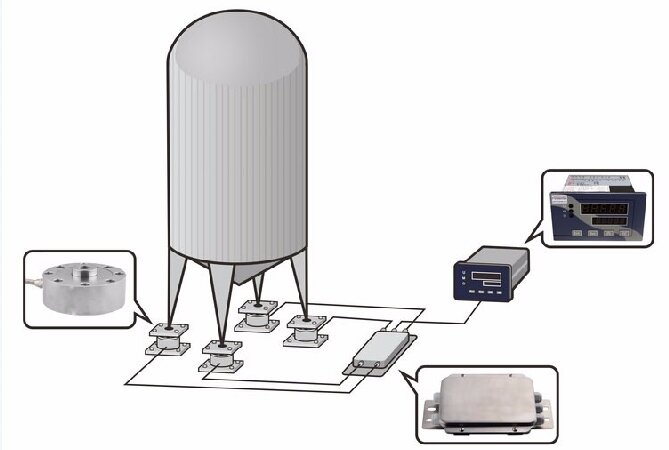

weighing. The GWM400 is widely used in tank, tower, hopper scale, and other occasions.

II.Product Details

III. Installation

Installation steps:
1.Fix the load cell and base plate diagonally with screws.
2. Fix the lower pressure head to the cell.
3. Fix the two screws to the base plate, ensuring they don't exceed the baseplate.
4. Install limit nuts on each screw, then install the upper pressure head and the upper pressure plate. Adjust the coaxiality

between the plate and the screw, and lock the anti-drop and limit nuts.

5. Fix the cell base plate to the lower mounting surface.
6. Fix the upper pressure plate to the upper mounting surface.
7. Loosen the anti-drop and limit nuts, and adjust the gap between them and the upper pressure plate (about 1 to 2 mm).

Notes:
1.Ensure the upper pressure plate is parallel to the base plate.
2. The upper pressure plate and the screw shouldn't touch each other.
3. There must be a gap between the limit nut, the upper pressure plate and the anti-drop nut. After installation, the upper

pressure plate can be semi-freely movable so that it can automatically adjust within a certain range.
