GSB205R

GSB205R

Shear beam load cell

Material:Alloy steel

Range: 0.1,0.2,0.3,0.5,1,2,3,5T
Size: 130*31.8*31.8mm
Match junction box and display
OEM&ODM; Customizable
ISO9001,CE,RoHS
Application: livestock scale, animal scale, floor scale

Get Quotes

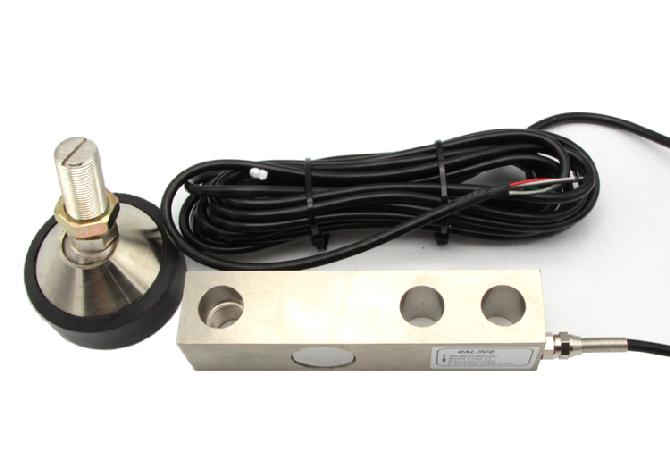

GSB205 Shear Beam Load Cell

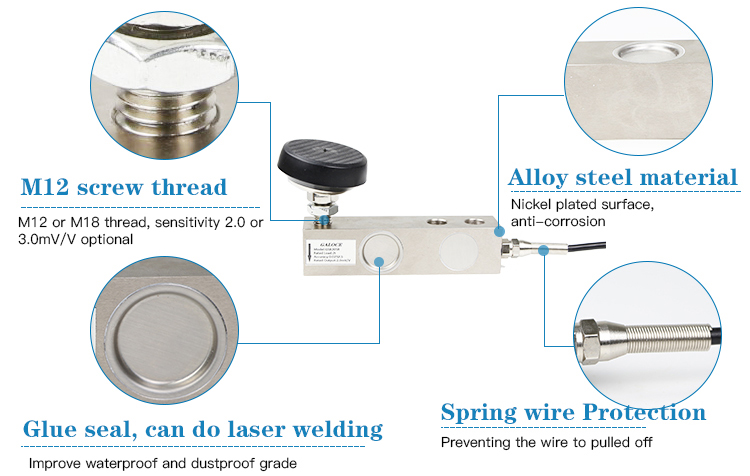

Features:

*Alloy steel material, spring wire, nickel plated surface, anti-corrosion,Glue seal,can do laser welding;

*M12 or M18 thread, sensitivity 2.0 or 3.0mV/V;

*One end is fixed and the other end is loaded with rubber legs and gaskets;

*Suitable for ground scale, electronic platform scale and other electronic weighing equipment.

Details:

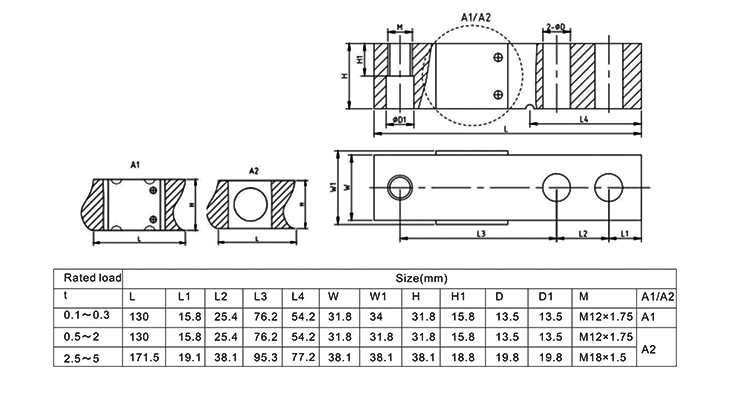

Spercifications:

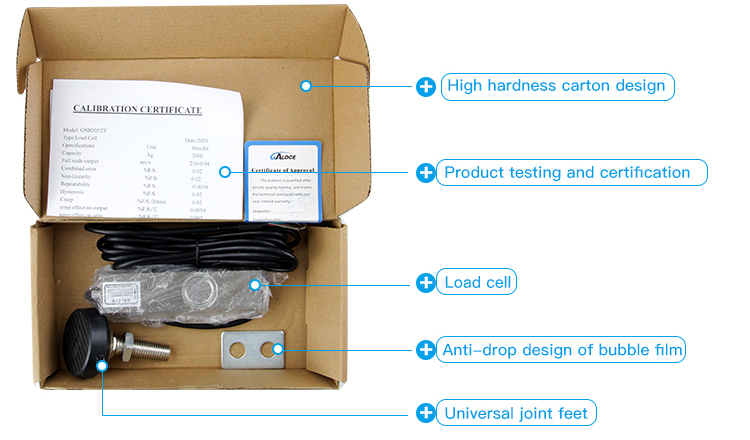

Package Details:
