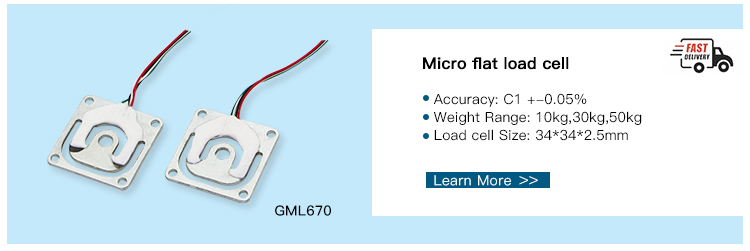

GML670 Micro Load Cell is our best selling product.Made of manganese steel throughout, multiple ranges are available.

Available in full and half bridge.Affordable price, high precision, can be applied to a variety of scenarios.

Features：

* Material: manganese steel, surface anodic oxidation treatment;

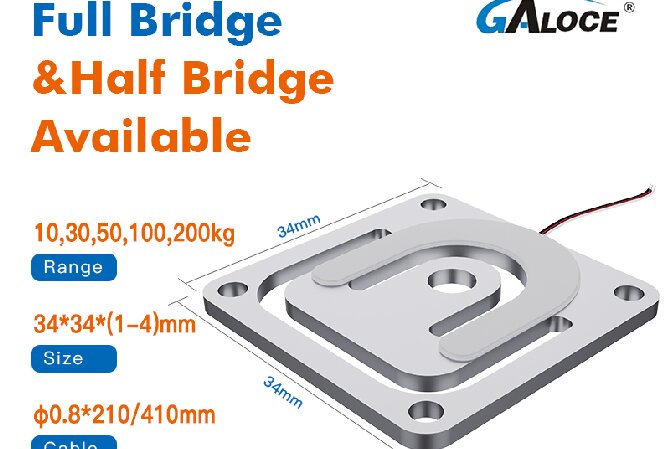

* High precision, half bridge and full bridge available;

* Application: portable scale and other miniature electronic weighing equipment

* Bulk order will get more competitive price, please inquiry us to get a quote!

Specification

Rated Load(kg)	5，10，30，50，75， 100，150，200(Full Bridge)	Operating Temp.Range	-10～+40℃
Comprehensive Error	±0.05%F.S	Rated Output	1.0～2.0±0.15mV/V(Full Bridge) 0.5～1.15±0.15mV/V(Half Bridge)
Zero Balance	±0.5mV/V(Full Bridge) ±0.3mV/V(Half Bridge)	Safe Overload	120%F.S
Creep	±0.05%F.S/3min	Ultimate Overload	150%F.S

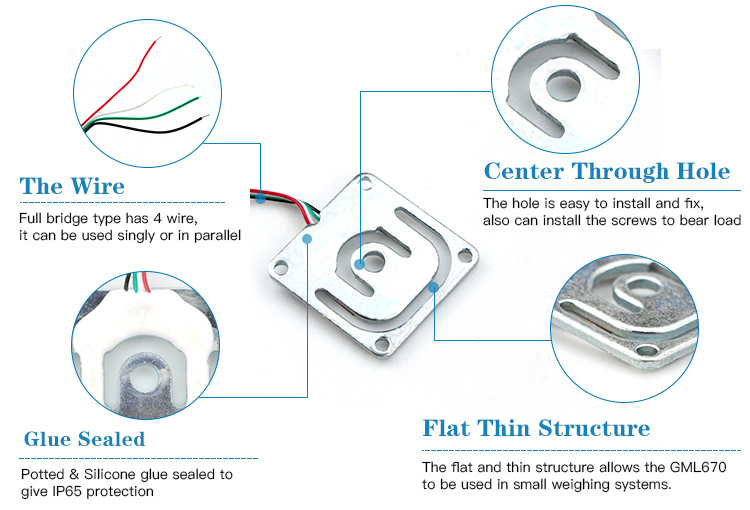

Input Resistance	1000±10%Ω	Cable	4 color PVC wires(Full Bridge) 3 color PVC wires(Half Bridge)
Output Resistance	1000±10%Ω	Cable Length	φ0.8×210mm(Full Bridge) φ0.8×450mm(Half Bridge)
Temp. Effect on Span	±0.1%F.S/10℃	Ingress Protection	IP65
Temp. Effect on Zero	±0.1%F.S/10℃	Four-angle Error(Half Bridge)	1.0%F.S

Applications
